Components [09/2015 - ]

WARNING: This page is about a different variant/trim than selected.

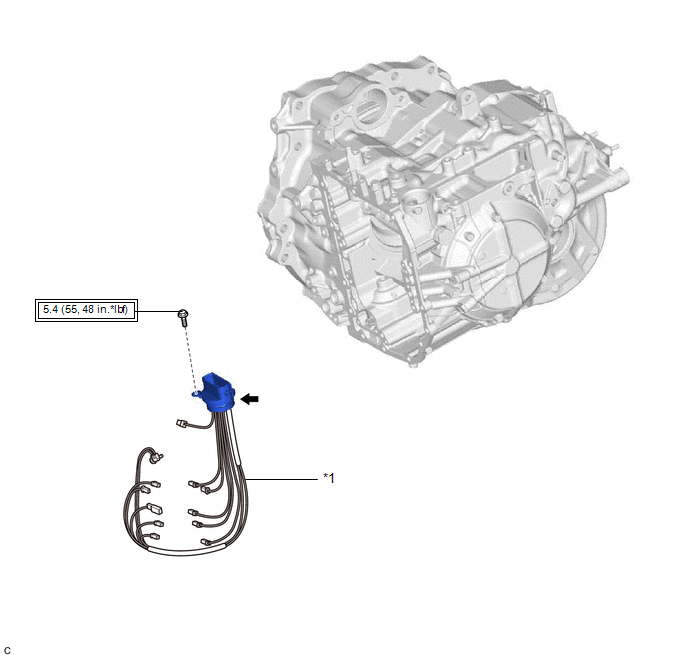

Fig 1: Transmission Wire Replacement Components With Torque Specifications
GTY611774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION WIRE - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ATF WS
