Removal [08/2016 - 08/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017] , or refer to PRECAUTION [12/2017 - 08/2019]

  2. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019]

  4. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  5. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE BATTERY

    See step  6

  7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 20 [12/2017 - 08/2019]

  9. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 21 [12/2017 - 08/2019]

  10. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2015 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

  11. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 38 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 38 [12/2017 - 08/2019]

  12. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 39 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 39 [12/2017 - 08/2019]

  13. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY645124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws and disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY630811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and disconnect the transmission control cable assembly from the transmission control shaft lever.
      GTY645103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with clip from the No. 1 transmission control cable bracket.
    6. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY444212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

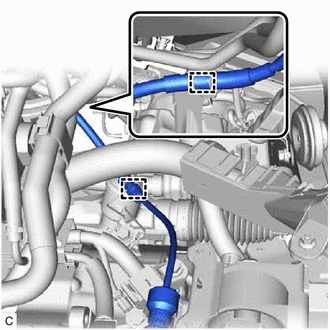

    7. Disengage the 2 clamps.
      GTY645106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

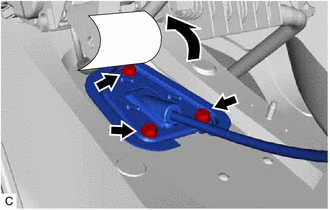

    8. Turn back the floor carpet.
      GTY679690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 3 bolts and transmission control cable assembly from the cabin.
