Components [09/2015 - ]
WARNING: This page is about a different variant/trim than selected.

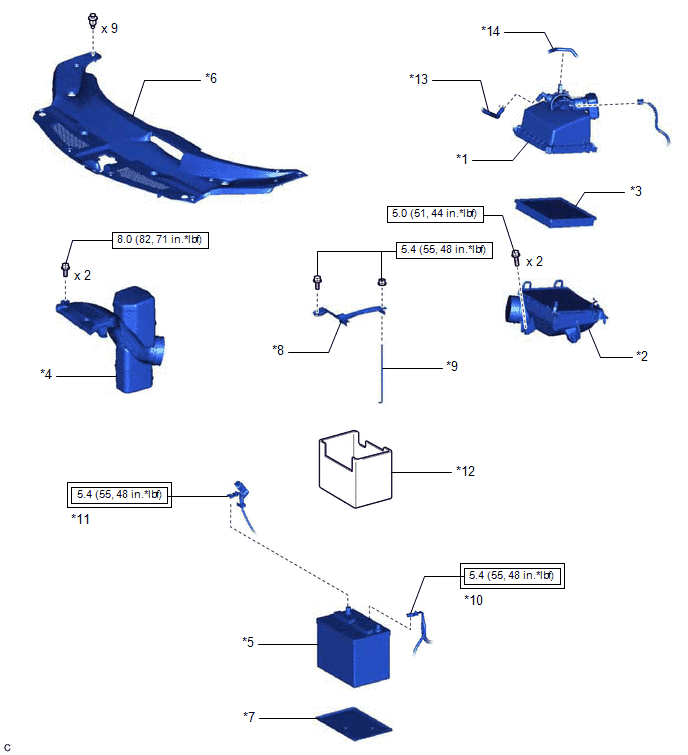

| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | BATTERY | *6 | COOL AIR INTAKE DUCT SEAL |
| *7 | BATTERY TRAY | *8 | BATTERY CLAMP SUB-ASSEMBLY |
| *9 | BATTERY CLAMP BOLT | *10 | NEGATIVE BATTERY TERMINAL |
| *11 | POSITIVE BATTERY TERMINAL | *12 | BATTERY INSULATOR |
| *13 | NO. 2 VENTILATION HOSE | *14 | NO. 1 FUEL VAPOR FEED HOSE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

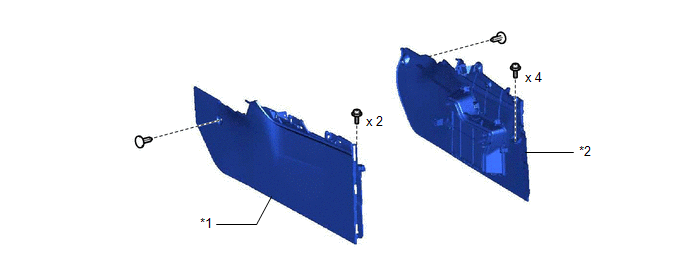

| *1 | FRONT NO. 1 CONSOLE BOX INSERT | *2 | FRONT NO. 2 CONSOLE BOX INSERT |
| Callout | Description | Callout | Description |
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
