Components [09/2015 - ]
WARNING: This page is about a different variant/trim than selected.

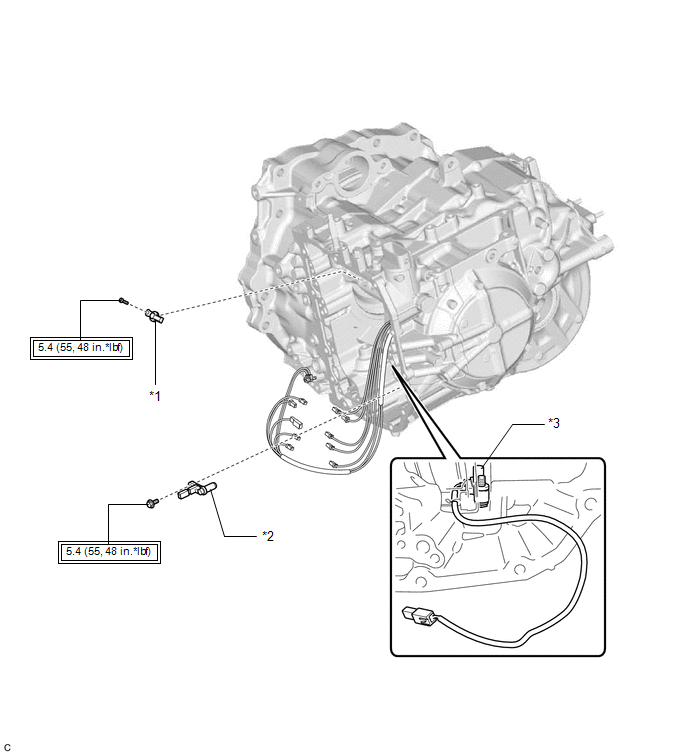

| Callout | Description | Callout | Description |
| *1 | TRANSMISSION REVOLUTION SENSOR (NC3) | *2 | TRANSMISSION REVOLUTION SENSOR (NT) |
| *3 | TRANSMISSION REVOLUTION SENSOR (NC) | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
