Reassembly [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SHIFT POSITION INDICATOR

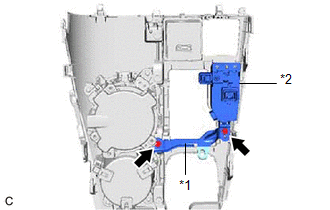

    1. Install the shift position indicator and console box bracket to the upper console panel sub-assembly with the 2 screws.
      GTY679195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Console Box Bracket
      *2 Shift Position Indicator
  2. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1
