Components [09/2015 - ]
WARNING: This page is about a different variant/trim than selected.
| *1 | FRONT NO. 1 CONSOLE BOX INSERT | - | - |

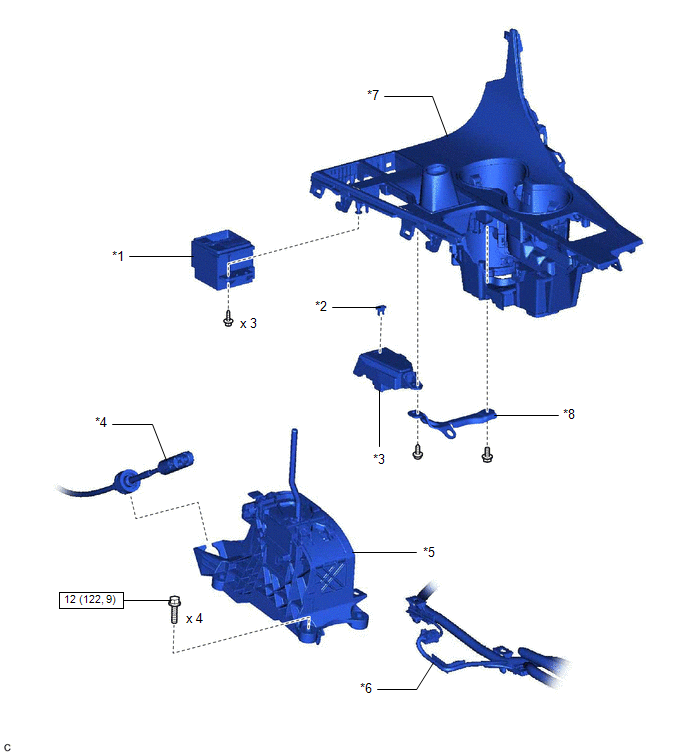

| Callout | Description | Callout | Description |
| *1 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *2 | SHIFT LOCK RELEASE BUTTON COVER |
| *3 | SHIFT POSITION INDICATOR | *4 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *5 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *6 | WIRE HARNESS |
| *7 | UPPER CONSOLE PANEL SUB-ASSEMBLY | *8 | CONSOLE BOX BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
