Installation [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Move the shift lever to N.
    2. Temporarily install the park/neutral position switch assembly to the automatic transaxle case sub-assembly with the 2 bolts.
      NOTE:

      Before installing the park/neutral position switch assembly, remove any dirt or rust on the manual valve lever shaft sub-assembly. Be sure to install the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be installed correctly.

    3. Install a new lock plate and the lock nut to the park/neutral position switch assembly.

      Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

    4. Temporarily install the transmission control shaft lever to the park/neutral position switch assembly.

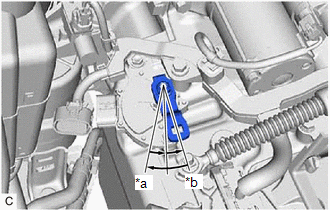

    5. Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.
      GTY627442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a P Position
      *b N Position
    6. Remove the transmission control shaft lever from the park/neutral position switch assembly.

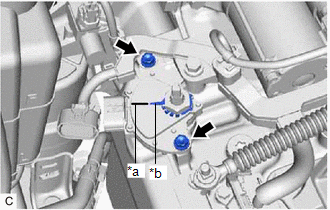

    7. Align the protrusion with the neutral basic line.
      GTY641531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Protrusion
    8. Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    9. Using a screwdriver, bend down the tabs of the lock plate.
    10. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the nut.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

    11. Connect the park/neutral position switch assembly connector.
  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Connect the transmission control cable assembly to the transmission control shaft lever with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      NOTE:

      Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in neutral.

  3. INSTALL BATTERY
    1. Install the battery clamp bolt to the battery carrier sub-assembly.
    2. Install the battery tray and battery.
    3. Install the battery insulator.
    4. Install the battery clamp sub-assembly with the bolt and nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    5. Connect the cable to the positive (+) battery terminal and tighten the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    6. Engage the 2 claws to close the battery terminal cap.
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]

  5. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  7. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION

    See step  2

  8. INSPECT SHIFT LEVER POSITION

    See step  2

  9. ADJUST SHIFT LEVER POSITION

    Refer to ADJUSTMENT [09/2015 - ]
