Components [09/2015 - ]
WARNING: This page is about a different variant/trim than selected.

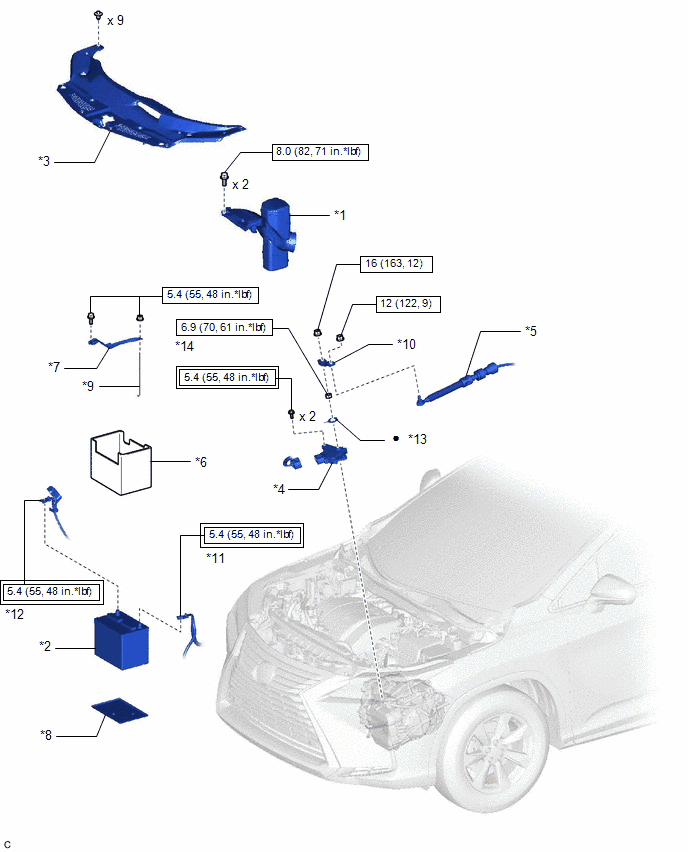

| Callout | Description | Callout | Description |
| *1 | INLET AIR CLEANER ASSEMBLY | *2 | BATTERY |
| *3 | COOL AIR INTAKE DUCT SEAL | *4 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *5 | TRANSMISSION CONTROL CABLE ASSEMBLY | *6 | BATTERY INSULATOR |
| *7 | BATTERY CLAMP SUB-ASSEMBLY | *8 | BATTERY TRAY |
| *9 | BATTERY CLAMP BOLT | *10 | TRANSMISSION CONTROL SHAFT LEVER |
| *11 | NEGATIVE BATTERY TERMINAL | *12 | POSITIVE BATTERY TERMINAL |
| *13 | LOCK PLATE | *14 | LOCK NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | - | - |
