Adjustment [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]

  5. REMOVE BATTERY

    See step  6, or see step  6, or see step  6

  6. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    See step  7, or see step  7, or see step  7

  7. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Disconnect the park/neutral position switch assembly connector.
      GTY671666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and transmission control shaft lever from the manual valve lever shaft sub-assembly.

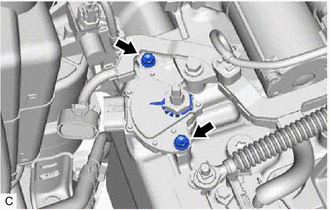

    3. Loosen the 2 bolts of the park/neutral position switch assembly.
      GTY644230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Align the protrusion with the neutral basic line.
      GTY631035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Protrusion
    5. Hold the park/neutral position switch assembly in position and tighten the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    6. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the nut.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

    7. Connect the park/neutral position switch assembly connector.
  8. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    See step  2

  9. INSTALL BATTERY

    See step  3

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [09/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]

  11. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 2

  12. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  13. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION

    See step  2
