Components [09/2015 - ]

WARNING: This page is about a different variant/trim than selected.

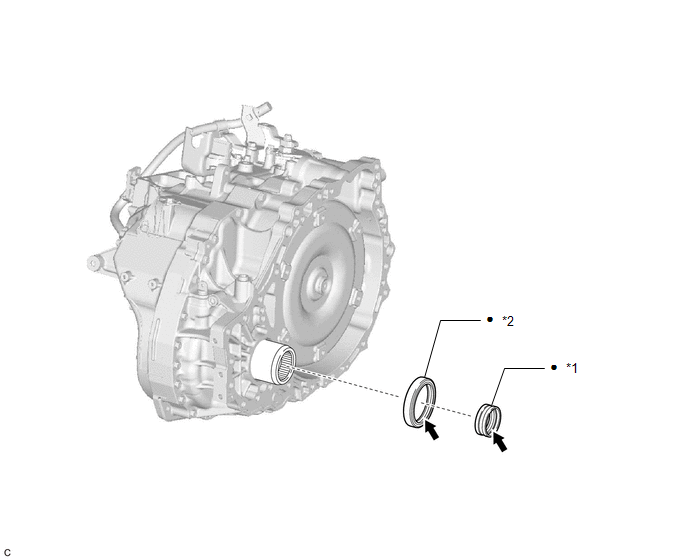

Fig 1: Differential Oil Seal (For RH Side) Replacement Components
GTY683864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DRIVE SHAFT OIL SEAL RH *2 TRANSAXLE CASE OIL SEAL
• Non-reusable part MP grease
