Replacement [08/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

DRAIN AUTOMATIC TRANSAXLE FLUID

Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a T40 "TORX" socket wrench, remove the drain plug and O-ring from the transaxle housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 17 mm straight hexagon wrench, remove the overflow plug and O-ring from the transaxle housing and drain the automatic transaxle fluid.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 17 mm straight hexagon wrench, install the overflow plug and a new O-ring to the transaxle housing.
Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)
Using a T40 "TORX" socket wrench, temporarily install the O-ring and drain plug to the transaxle housing.
HINT:

Reuse the old O-ring as the drain plug will be removed again to adjust the automatic transaxle fluid level.
Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage.
HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

REMOVE FRONT DRIVE SHAFT OIL SEAL LH

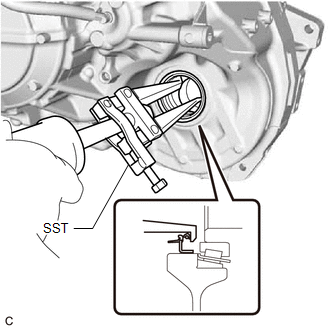

Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to damage the automatic transaxle case sub-assembly.

INSTALL FRONT DRIVE SHAFT OIL SEAL LH

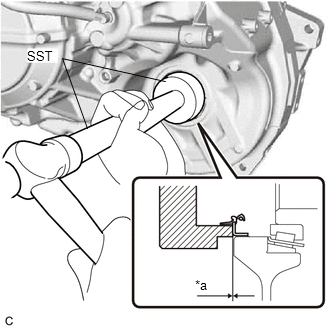

Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle case sub-assembly.

Depth

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Make sure that the front drive shaft oil seal LH is installed in the correct direction.
Do not damage the lip of the front drive shaft oil seal LH.
