Removal [09/2015 - 08/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REMOTE TOUCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019]

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019]

  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019]

  7. REMOVE CONSOLE BOX ORNAMENT

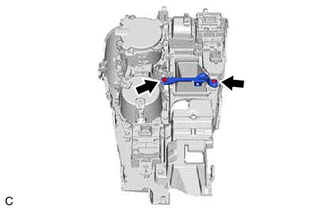

    1. Remove the 2 screws and console box bracket.
      GTY676532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

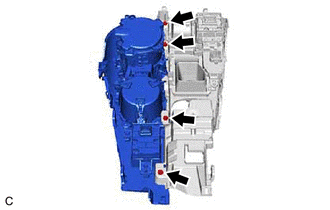

    2. Remove the 4 screws and console box ornament from the shifting hole frame sub-assembly.
      GTY676531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE COMBINATION SWITCH ASSEMBLY

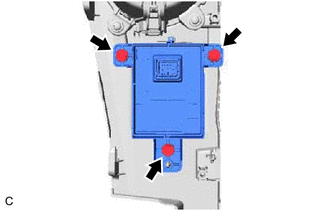

    1. Remove the 3 screws and combination switch assembly from the console box ornament.
      GTY647109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
