Removal [08/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR CONSOLE UPPER PANEL

    Refer to PROCEDURE - Step 1

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5

  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE CONSOLE BOX ORNAMENT

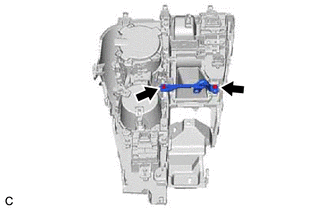

    1. Remove the 2 screws and console box bracket.
      GTY957363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

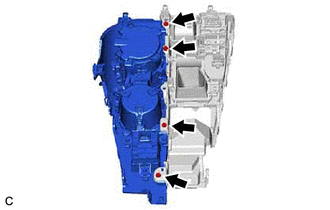

    2. Remove the 4 screws and console box ornament from the shifting hole frame sub-assembly.
      GTY957365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE COMBINATION SWITCH ASSEMBLY
    1. Remove the 3 screws and combination switch assembly from the console box ornament.
      GTY647109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
