Replacement [09/2015 - ]: Procedure

Refer to PROCEDURE - Step 7 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

Refer to PROCEDURE - Step 8 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

Refer to PROCEDURE - Step 13 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 13 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 13 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 15 [08/2019 - ]

1. Lift the vehicle. [#1]
   NOTE:

   Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure the tilt angle from the front to rear of the vehicle is within +/- 1°).

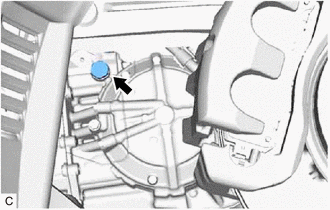

2. Remove the refill plug and gasket from the automatic transaxle case sub-assembly. [#2]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

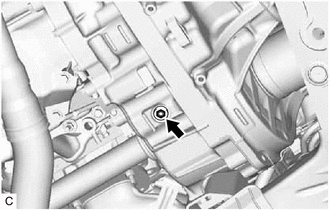

3. Using a T40 "TORX" socket wrench, remove the drain plug and O-ring from the transaxle housing. [#3]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

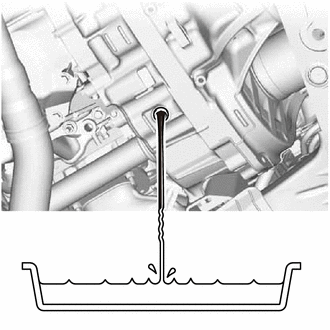

4. Using a 17 mm straight hexagon wrench, remove the overflow plug and O-ring from the transaxle housing and drain the automatic transaxle fluid. [#4]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Measure the amount of automatic transaxle fluid drained. [#5]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Add the same amount of automatic transaxle fluid in step [#8].

6. Using a 17 mm straight hexagon wrench, install the overflow plug and a new O-ring to the transaxle housing. [#6]

   Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Using a T40 "TORX" socket wrench, temporarily install the O-ring and drain plug to the transaxle housing. [#7]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Reuse the old O-ring as the drain plug will be removed again to adjust the automatic transaxle fluid level.

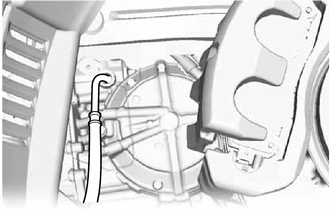

8. Add automatic transaxle fluid to the refill hole using the same amount of automatic transaxle fluid drained in step [#5]. [#8]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Use Toyota Genuine ATF WS.

9. Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage. [#9]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

10. Lower the vehicle. [#10]
11. Start the engine. [#11]
12. Slowly move the shift lever from P to D, and then back to P. [#12]

    HINT:

    Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.

13. Allow the engine to idle for 30 seconds to warm it up. [#13]
14. Turn the engine switch off. [#14]
15. Repeat steps [#1] to [#14].
16. Repeat steps [#1] to [#10].

See step  6, or see step  6

See step  7, or see step  7

See step  8, or see step  8

See step  9, or see step  9

Refer to PROCEDURE - Step 64 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 64 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 64 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 64 [08/2019 - ]

Refer to PROCEDURE - Step 69 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 69 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 69 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 71 [08/2019 - ]

Refer to PROCEDURE - Step 70 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 70 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 70 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 72 [08/2019 - ]
