Components [09/2015 - 12/2017]
WARNING: This page is about a different variant/trim than selected.

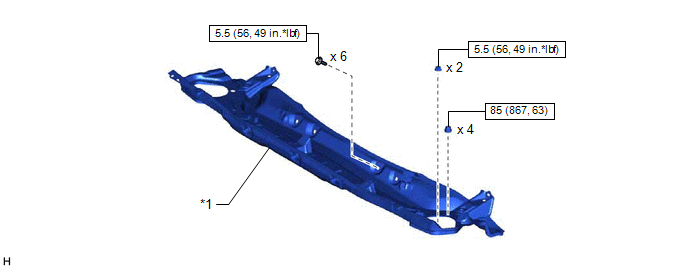

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (1 Of 9)
| Callout | Description | Callout | Description |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

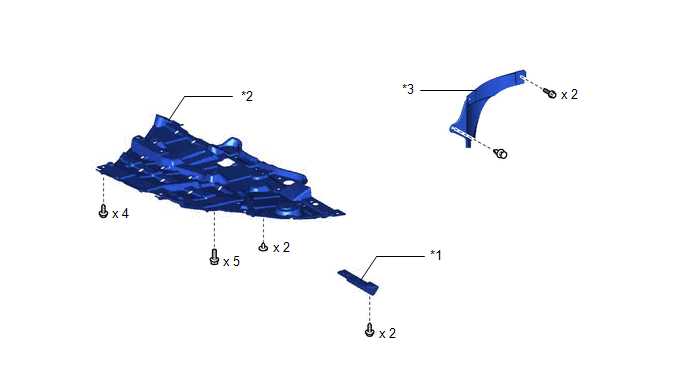

| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | NO. 3 ENGINE UNDER COVER |
| *3 | FRONT FENDER APRON SEAL LH | - | - |

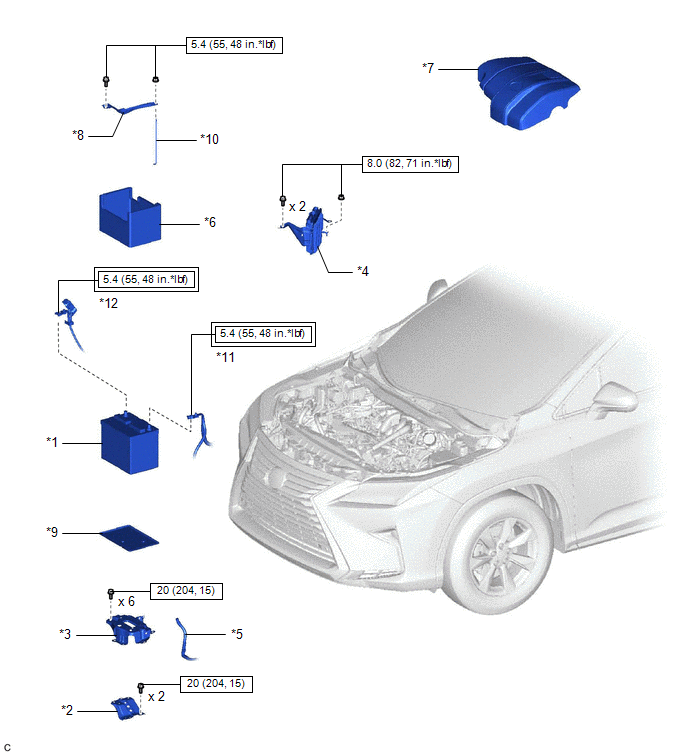

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (3 Of 9)
| Callout | Description | Callout | Description |
| *1 | BATTERY | *2 | BATTERY BRACKET REINFORCEMENT |
| *3 | BATTERY CARRIER SUB-ASSEMBLY | *4 | ECM |
| *5 | ENGINE WIRE | *6 | BATTERY INSULATOR |
| *7 | V-BANK COVER SUB-ASSEMBLY | *8 | BATTERY CLAMP SUB-ASSEMBLY |
| *9 | BATTERY TRAY | *10 | BATTERY CLAMP BOLT |
| *11 | NEGATIVE BATTERY TERMINAL | *12 | POSITIVE BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

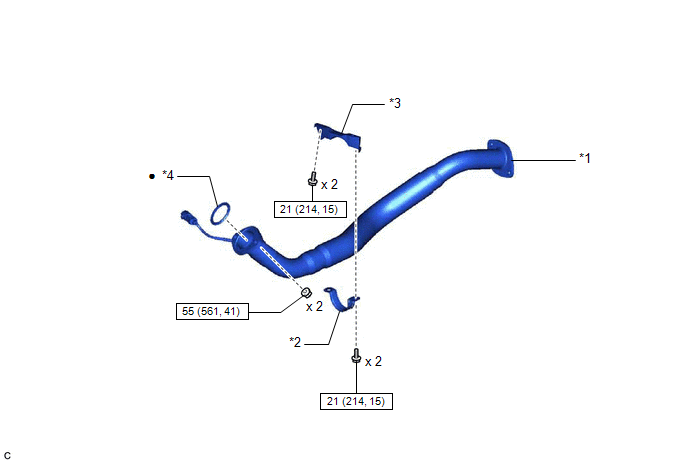

Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (4 Of 9)
| Callout | Description | Callout | Description |
| *1 | FRONT EXHAUST PIPE ASSEMBLY | *2 | NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
| *3 | NO. 1 EXHAUST PIPE SUPPORT BRACKET | *4 | EXHAUST PIPE GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

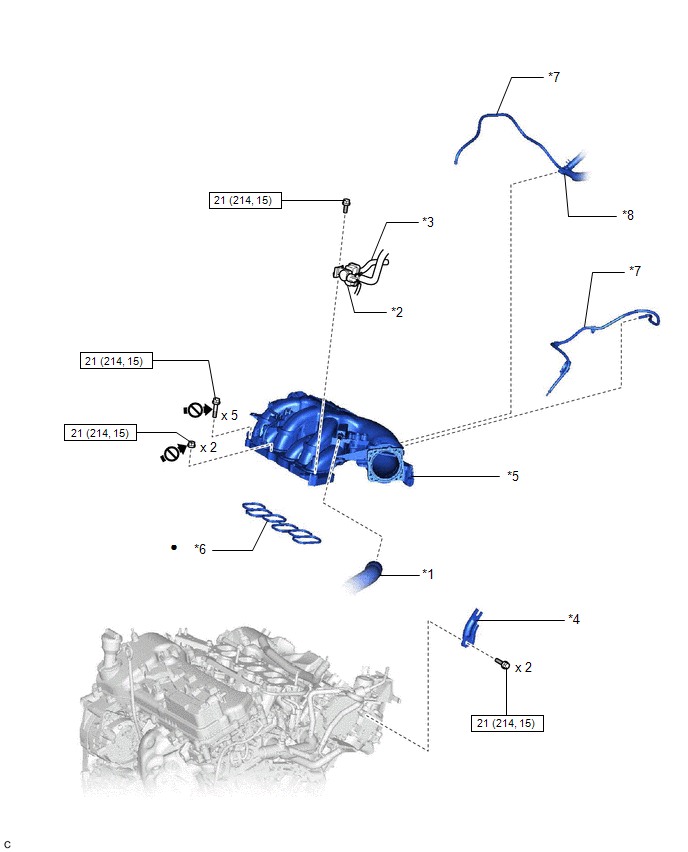

Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (5 Of 9)
| Callout | Description | Callout | Description |
| *1 | VENTILATION HOSE | *2 | PURGE VALVE (PURGE VSV) |
| *3 | NO. 1 FUEL VAPOR FEED HOSE | *4 | NO. 2 SURGE TANK STAY |
| *5 | INTAKE AIR SURGE TANK ASSEMBLY | *6 | AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 | VACUUM HOSE SUB-ASSEMBLY | *8 | NO. 2 AIR TUBE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants (to the threaded parts) | - | - |

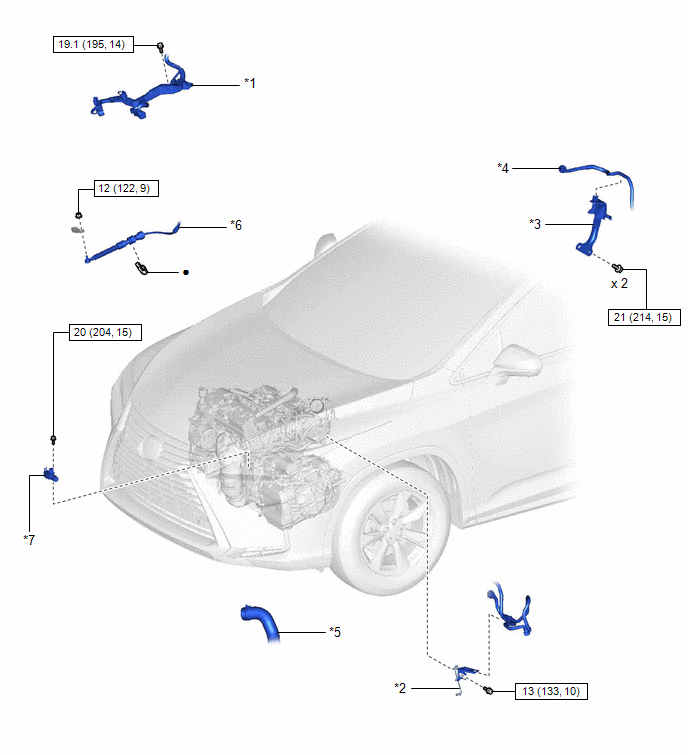

Fig 6: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (6 Of 9)
| Callout | Description | Callout | Description |
| *1 | WIRE HARNESS | *2 | WIRE HARNESS CLAMP BRACKET |
| *3 | FUEL PUMP PROTECTOR | *4 | FUEL TUBE SUB-ASSEMBLY |
| *5 | NO. 1 RADIATOR HOSE | *6 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *7 | NO. 2 VACUUM SWITCHING VALVE ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

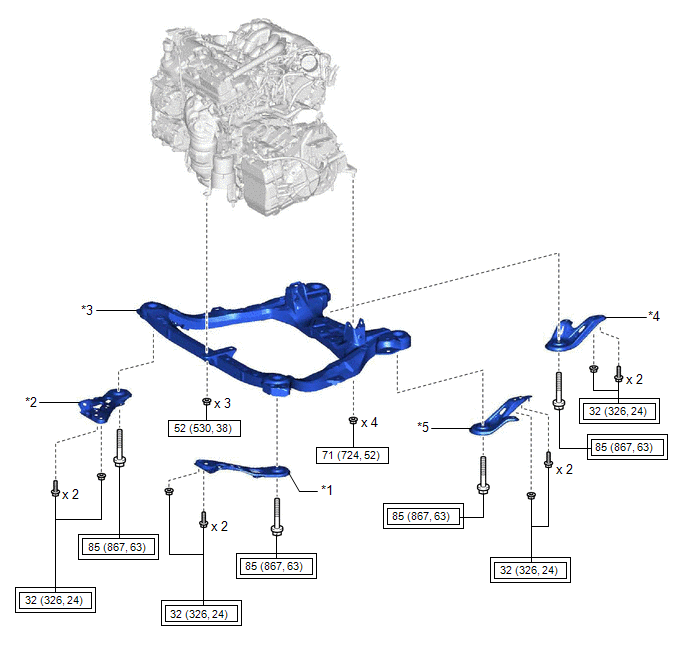

Fig 7: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (7 Of 9)
| Callout | Description | Callout | Description |
| *1 | FRAME SIDE RAIL PLATE SUB-ASSEMBLY LH | *2 | FRAME SIDE RAIL PLATE SUB-ASSEMBLY RH |
| *3 | FRONT FRAME ASSEMBLY | *4 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH |
| *5 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH | - | - |
| N*m (kgf*cm, ft.*lbf): Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" | N*m (kgf*cm, ft.*lbf): Specified torque |

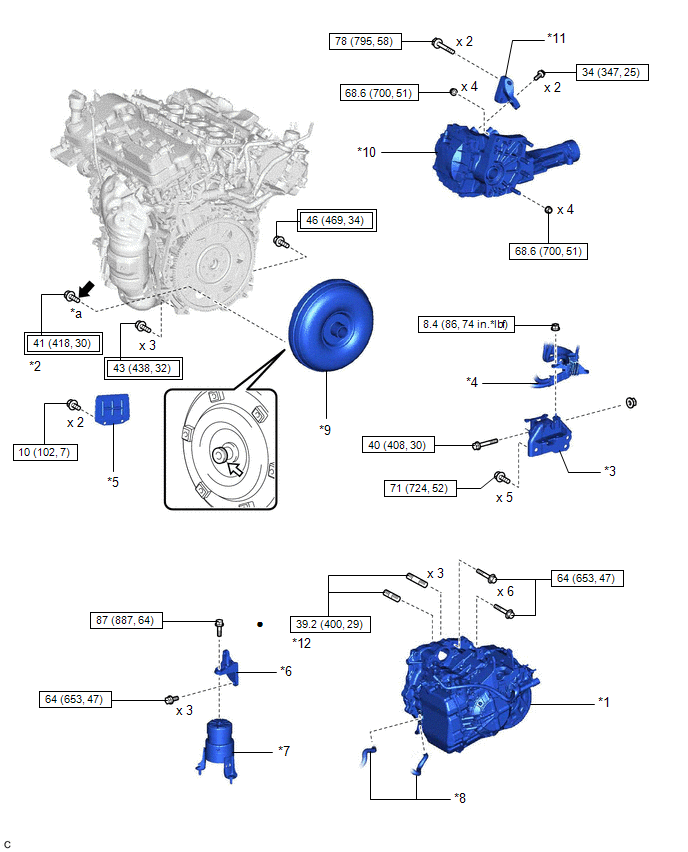

Fig 8: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (8 Of 9)
| Callout | Description | Callout | Description |
| *1 | AUTOMATIC TRANSAXLE ASSEMBLY | *2 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 | ENGINE MOUNTING INSULATOR LH | *4 | ENGINE WIRE |
| *5 | FLYWHEEL HOUSING UNDER COVER | *6 | FRONT ENGINE MOUNTING BRACKET |
| *7 | FRONT ENGINE MOUNTING INSULATOR | *8 | NO. 1 TRANSMISSION OIL COOLER HOSE |
| *9 | TORQUE CONVERTER ASSEMBLY | *10 | TRANSFER ASSEMBLY |
| *11 | TRANSFER STIFFENER PLATE RH | *12 | TRANSFER AND TRANSAXLE SETTING STUD BOLT |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | Adhesive 1324 | |
| Clutch spline grease | * | Precoated part |

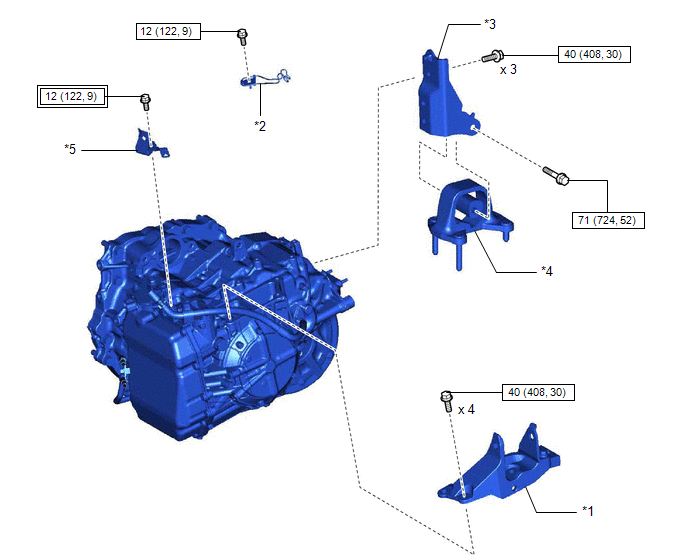

Fig 9: Automatic Transaxle Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (9 Of 9)
| Callout | Description | Callout | Description |
| *1 | ENGINE MOUNTING BRACKET LH | *2 | NO. 2 TRANSMISSION CONTROL CABLE BRACKET |
| *3 | REAR ENGINE MOUNTING BRACKET | *4 | REAR ENGINE MOUNTING INSULATOR |
| *5 | TRANSMISSION BREATHER SKIRT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
