Installation [09/2015 - 08/2019]: Procedure

HINT:

Perform this procedure only when replacement of the transmission oil cooler stay is necessary.

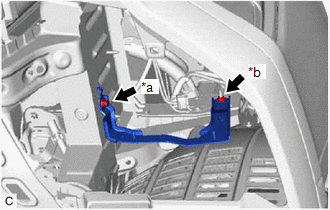

1. Install the transmission oil cooler stay to the vehicle body with the bolt and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt
   *b	Nut

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   NOTE:

   Tightening order: Temporarily tighten bolt → Fully tighten nut → Fully tighten bolt

1. Install the oil cooler assembly to the transmission oil cooler stay with the 2 nuts.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

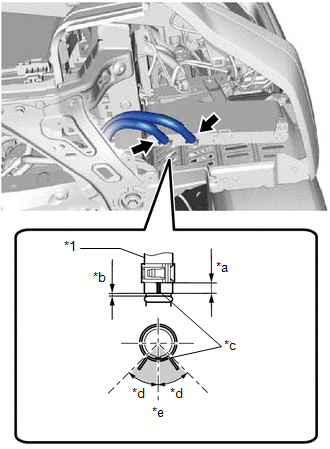

1. Connect the No. 1 transmission oil cooler hose assembly to the oil cooler assembly and slide the 2 clips to secure it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Transmission Oil Cooler Hose Assembly
   *a	Clip Position (2 to 7 mm (0.0787 to 0.276 in.))
   *b	Hose Position (0 to 3 mm (0 to 0.118 in.))
   *c	Paint Mark
   *d	45°
   *e	Down
   	Paint Mark Location

   NOTE:

   • Make sure to install each clip within the area shown in the illustration.
   • Make sure that each paint mark is within the location shown in the illustration.

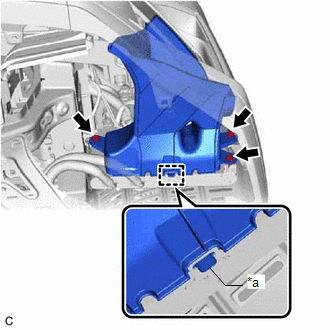

1. Engage the guide to temporarily install the transmission oil cooler air duct to the oil cooler assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Guide

2. Install the transmission oil cooler air duct to the oil cooler assembly with the 3 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Refer to ADJUSTMENT [09/2015 - 08/2019]

Refer to PROCEDURE - Step 67 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 67 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 67 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 69 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 69 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 69 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 68 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 68 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 68 [12/2017 - 08/2019]

Refer to PROCEDURE - Step 70 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 70 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 70 [12/2017 - 08/2019]
