Installation [08/2019 - ]: Procedure

HINT:

Perform this procedure only when replacement of the oil cooler bracket is necessary.

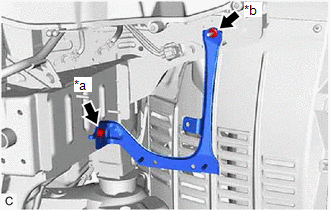

1. Install the oil cooler bracket to the vehicle body with the bolt and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt
   *b	Nut

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   NOTE:

   Tightening order: Temporarily tighten bolt → Fully tighten nut → Fully tighten bolt

1. Install the oil cooler assembly to the oil cooler bracket with the 2 nuts.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

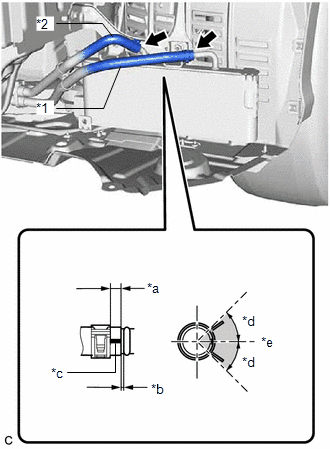

1. Connect the outlet No. 1 oil cooler hose to the oil cooler assembly and slide the clip to secure it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Outlet No. 1 Oil Cooler Hose
   *2	Transmission Oil Cooler Hose
   *a	Clip Position (2 to 7 mm (0.0787 to 0.276 in.))
   *b	Hose Position (0 to 3 mm (0 to 0.118 in.))
   *c	Paint Mark
   *d	45°
   *e	Left Side of Vehicle
   	Paint Mark Location

   NOTE:

   • Make sure to install the clip within the area shown in the illustration.
   • Make sure that each paint mark is within the location shown in the illustration.
2. Connect the transmission oil cooler hose to the oil cooler assembly and slide the clip to secure it.
   NOTE:

   • Make sure to install clip within the area shown in the illustration.
   • Make sure that each paint mark is within the location shown in the illustration.

1. Engage the 3 claws to install the transmission oil cooler air duct to the oil cooler assembly.

Refer to INSTALLATION [08/2019 - ]

Refer to ADJUSTMENT [08/2019 - ]
