Components [08/2019 - ]

WARNING: This page is about a different variant/trim than selected.

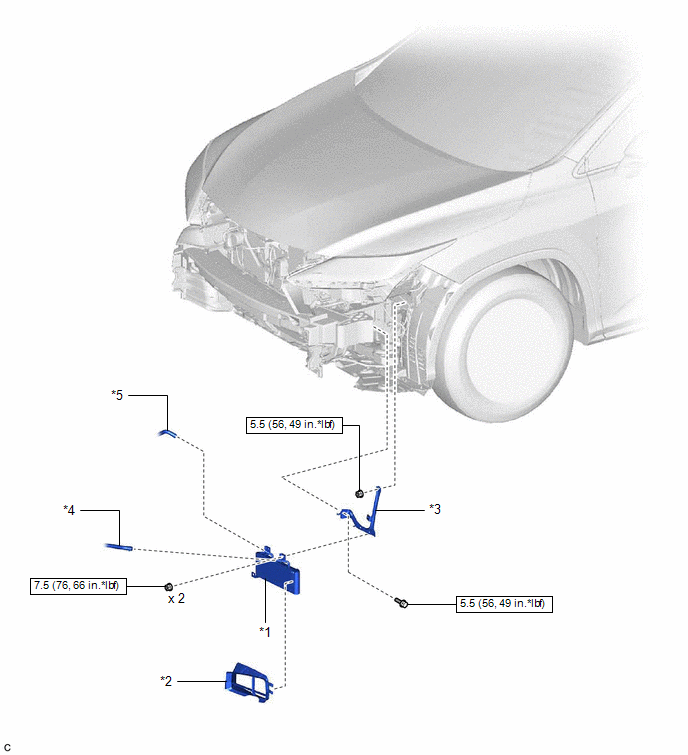

Fig 1: Air Cooled Oil Cooler Replacement Components With Torque Specifications [08/2019 - ]
GTY956440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL COOLER ASSEMBLY *2 TRANSMISSION OIL COOLER AIR DUCT
*3 OIL COOLER BRACKET *4 OUTLET NO. 1 OIL COOLER HOSE
*5 TRANSMISSION OIL COOLER HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
