System Diagram [09/2015 - 08/2019]

WARNING: This page is about a different variant/trim than selected.

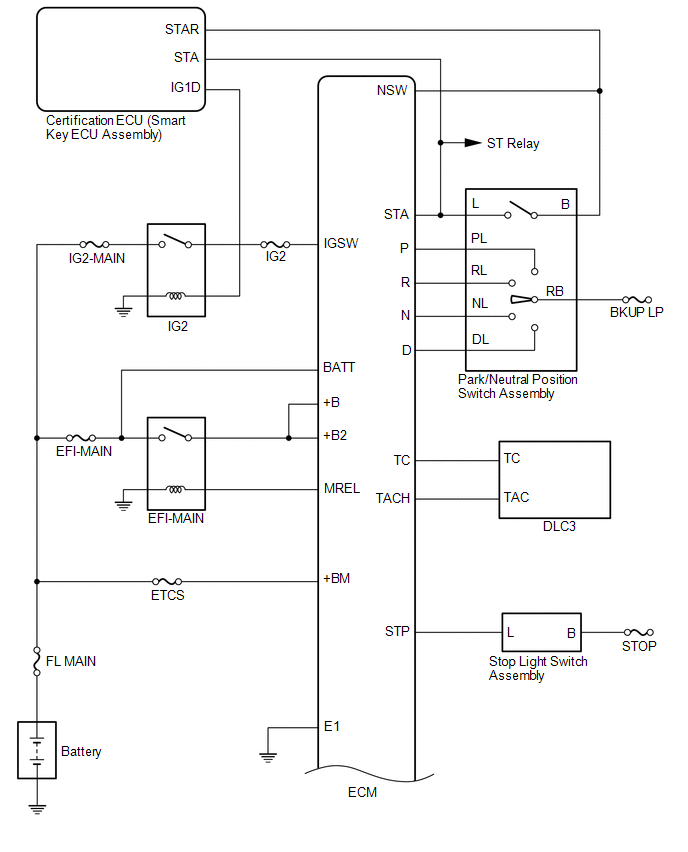

GTY670788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

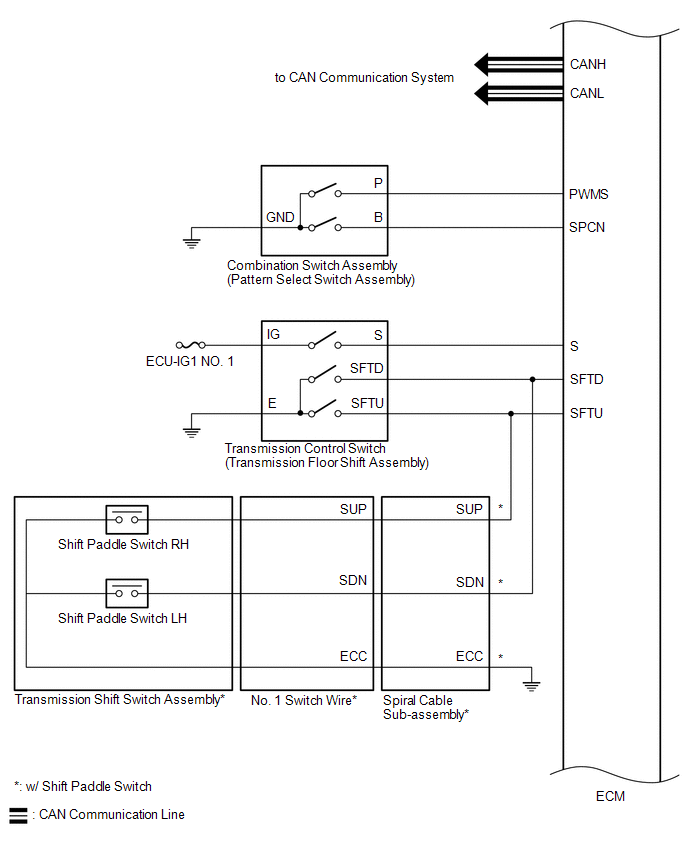

GTY632809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

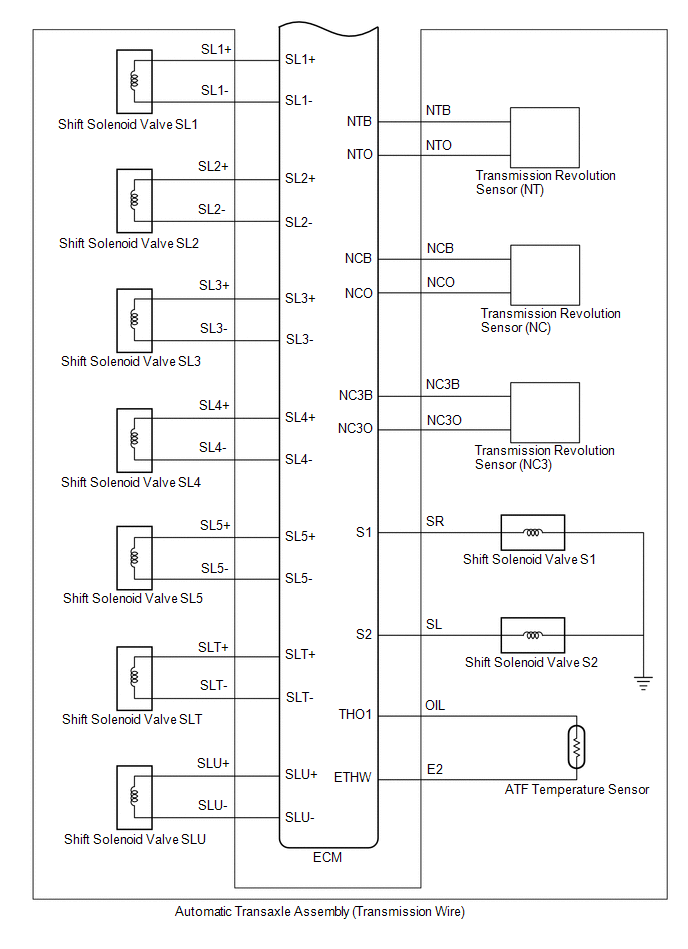

GTY645018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
