Parts Location [08/2019 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

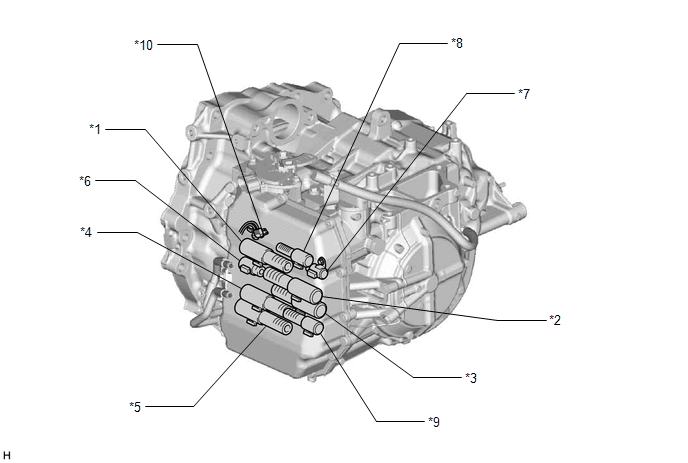

| *1 | SHIFT SOLENOID VALVE SL1 | *2 | SHIFT SOLENOID VALVE SL2 |
| *3 | SHIFT SOLENOID VALVE SL3 | *4 | SHIFT SOLENOID VALVE SL4 |
| *5 | SHIFT SOLENOID VALVE SL5 | *6 | SHIFT SOLENOID VALVE S1 |
| *7 | SHIFT SOLENOID VALVE S2 | *8 | SHIFT SOLENOID VALVE SLU |
| *9 | SHIFT SOLENOID VALVE SLT | *10 | TRANSMISSION WIRE - ATF TEMPERATURE SENSOR |

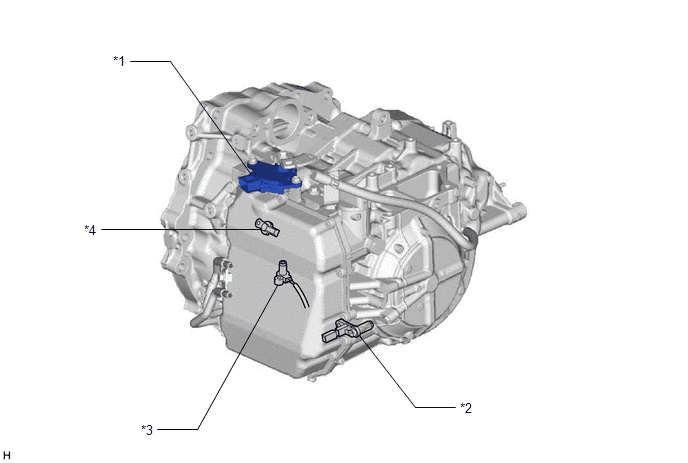

| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | TRANSMISSION REVOLUTION SENSOR (NT) |
| *3 | TRANSMISSION REVOLUTION SENSOR (NC) | *4 | TRANSMISSION REVOLUTION SENSOR (NC3) |

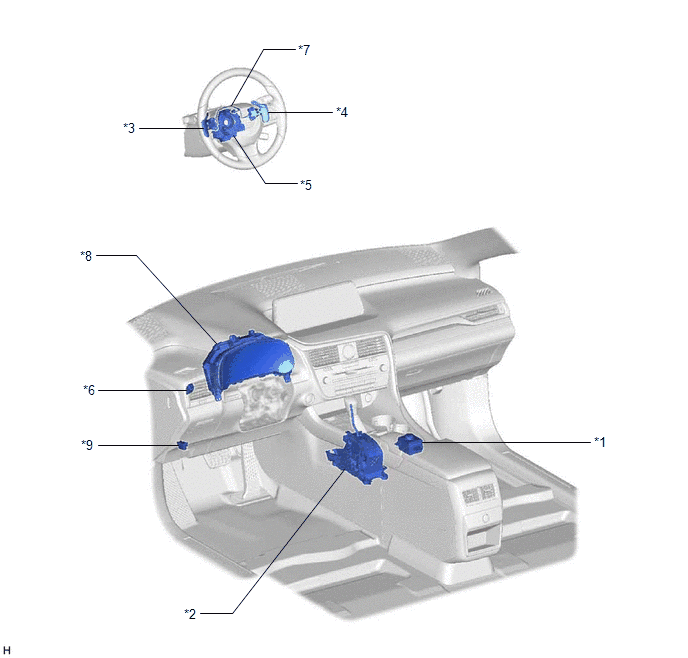

| *1 | - NORMAL MODE SWITCH COMBINATION SWITCH ASSEMBLY - SPORT MODE SWITCH |
*2 | - TRANSMISSION CONTROL SWITCH TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *3 | SHIFT PADDLE SWITCH LH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *4 | SHIFT PADDLE SWITCH RH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | NO. 1 SWITCH WIRE | *8 | COMBINATION METER ASSEMBLY |
| *9 | DLC3 | - | - |
