Removal [09/2015 - 08/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016]

  2. REMOVE NO. 3 ULTRASONIC SENSOR

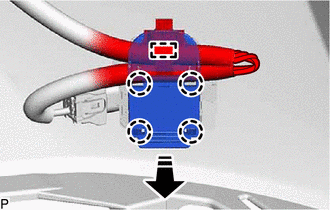

    1. Disengage the clamp.

      HINT:

      The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

      GTY668139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 4 claws and remove the ultrasonic sensor clip as shown in the illustration.

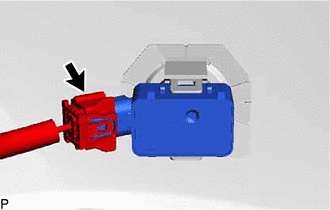

    3. Disconnect the connector.
      GTY683568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

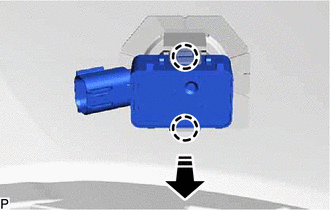

    4. Disengage the 2 claws and remove the No. 3 ultrasonic sensor as shown in the illustration.
      GTY673295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

  3. REMOVE NO. 4 ULTRASONIC SENSOR

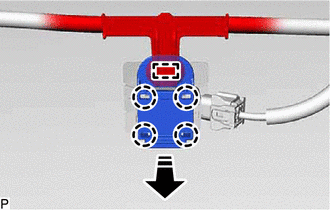

    1. Disengage the clamp.

      HINT:

      The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

      GTY675454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 4 claws and remove the ultrasonic sensor clip as shown in the illustration.

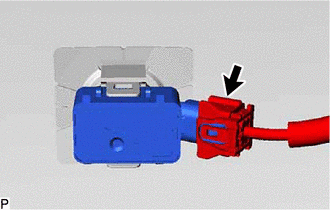

    3. Disconnect the connector.
      GTY662647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

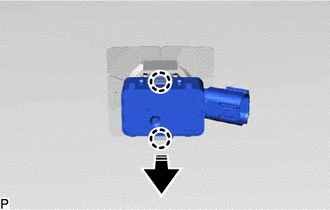

    4. Disengage the 2 claws and remove the No. 4 ultrasonic sensor as shown in the illustration.
      GTY635511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

  4. REMOVE NO. 3 ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the No. 3 ultrasonic sensor retainer is necessary.
    • When removing the No. 3 ultrasonic sensor retainer, heat the rear bumper assembly and No. 3 ultrasonic sensor retainer using a heat light.
    1. Heat the rear bumper assembly and No. 3 ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature

      Item Temperature
      Rear Bumper Assembly 40 to 60°C (104 to 140°F)
      No. 3 Ultrasonic Sensor Retainer
      WARNING:
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light

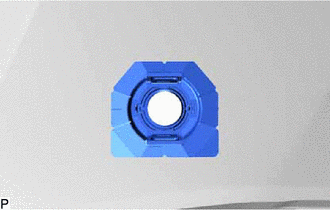

    2. Remove the No. 3 ultrasonic sensor retainer.
      GTY662219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 4 ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the No. 4 ultrasonic sensor retainer is necessary.
    • When removing the No. 4 ultrasonic sensor retainer, heat the rear bumper assembly and No. 4 ultrasonic sensor retainer using a heat light.
    1. Heat the rear bumper assembly and No. 4 ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature

      Item Temperature
      Rear Bumper Assembly 40 to 60°C (104 to 140°F)
      No. 4 Ultrasonic Sensor Retainer
      WARNING:
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light

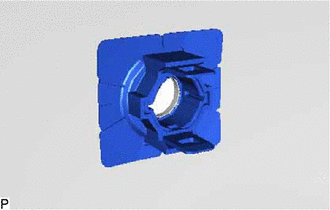

    2. Remove the No. 4 ultrasonic sensor retainer.
      GTY663470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
