Components [08/2019 - ]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

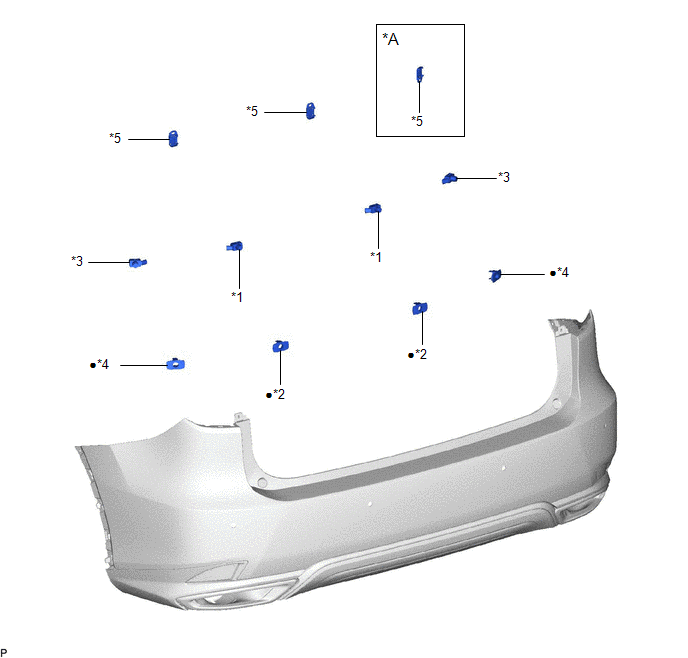

Fig 1: Ultrasonic Sensor (For Rear) Replacement Components [08/2019 - ]
GTY963024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for RH Side with Rear No. 2 Seat - -
*1 REAR CENTER ULTRASONIC SENSOR *2 REAR CENTER ULTRASONIC SENSOR RETAINER
*3 REAR CORNER ULTRASONIC SENSOR *4 REAR CORNER ULTRASONIC SENSOR RETAINER
*5 ULTRASONIC SENSOR CLIP - -
• Non-reusable part - -
