Removal [08/2019 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2019 - ]

  2. REMOVE FRONT CENTER ULTRASONIC SENSOR

    HINT:

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

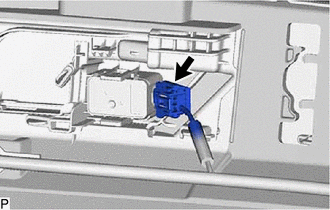

    1. Disconnect the connector.
      GTY963124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

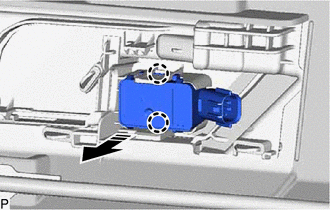

    2. Disengage the 2 claws and remove the front center ultrasonic sensor as shown in the illustration.
      GTY961835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE FRONT CORNER ULTRASONIC SENSOR

    HINT:

    The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

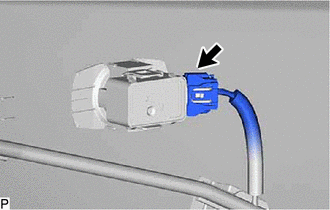

    1. Disconnect the connector.
      GTY962818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

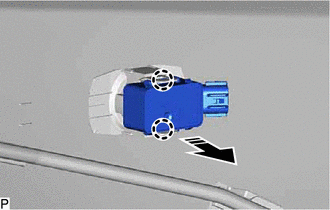

    2. Disengage the 2 claws and remove the front corner ultrasonic sensor as shown in the illustration.
      GTY962328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER

    HINT:

    • Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.
    • When removing the front corner ultrasonic sensor retainer, heat the front bumper assembly and front corner ultrasonic sensor retainer using a heat light.
    • The illustration is for the LH side. Use the same procedure for the RH side and LH side.
    1. Heat the front bumper assembly and front corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature

      Item Temperature
      Front Bumper Assembly 40 to 60°C (104 to 140°F)
      Front Corner Ultrasonic Sensor Retainer
      WARNING:
      • Do not touch the heat light and heated parts.
      • Touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.
      GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Part
      *b Heat Light

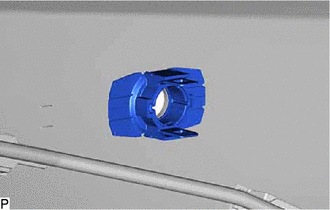

    2. Remove the front corner ultrasonic sensor retainer.
      GTY963137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
