Components [09/2015 - 08/2019]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

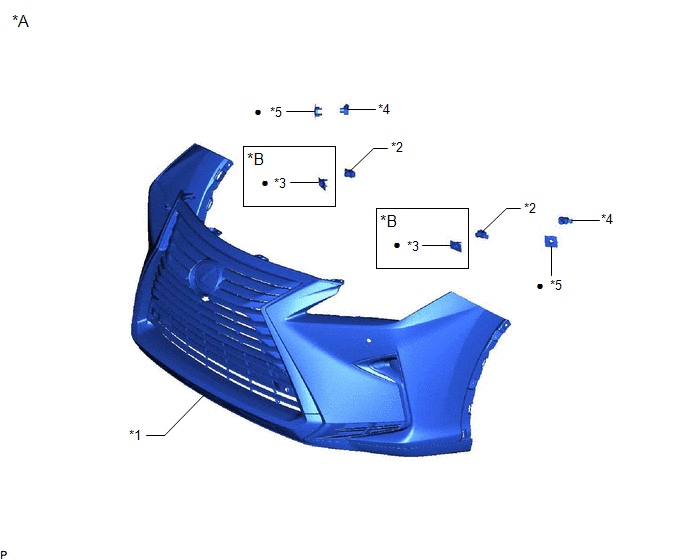

| *A |
for Bar Type Radiator Grille |
*B |
for TMMC Made |
| *1 |
FRONT BUMPER ASSEMBLY |
*2 |
NO. 1 ULTRASONIC SENSOR |
| *3 |
NO. 1 ULTRASONIC SENSOR RETAINER |
*4 |
NO. 2 ULTRASONIC SENSOR |
| *5 |
NO. 2 ULTRASONIC SENSOR RETAINER |
- |
- |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

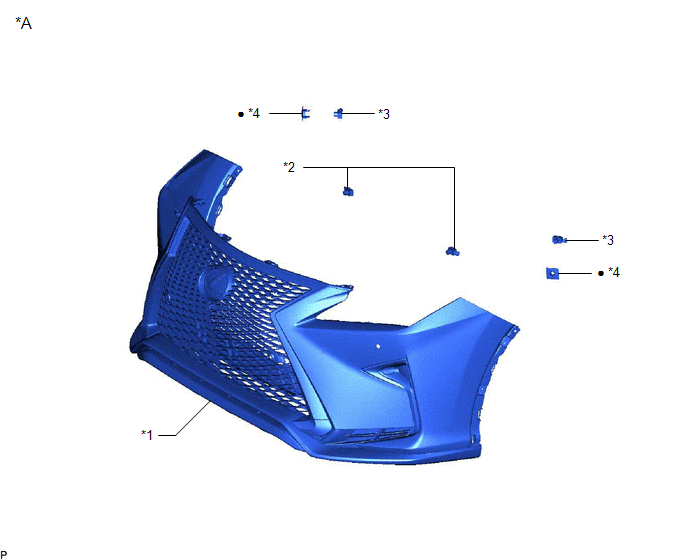

| *A |
for Mesh Type Radiator Grille |
- |
- |
| *1 |
FRONT BUMPER ASSEMBLY |
*2 |
NO. 1 ULTRASONIC SENSOR |
| *3 |
NO. 2 ULTRASONIC SENSOR |
*4 |
NO. 2 ULTRASONIC SENSOR RETAINER |
| • |
Non-reusable part |
- |
- |
