Components [08/2019 - ]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

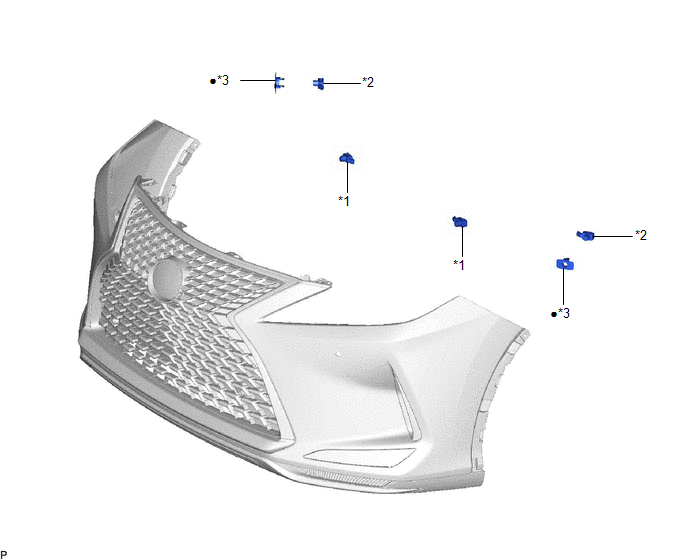

Fig 1: Ultrasonic Sensor (Front) Replacement Components [08/2019 - ]
GTY962016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT CENTER ULTRASONIC SENSOR *2 FRONT CORNER ULTRASONIC SENSOR
*3 FRONT CORNER ULTRASONIC SENSOR RETAINER - -
• Non-reusable part - -
