Components [09/2015 - ]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

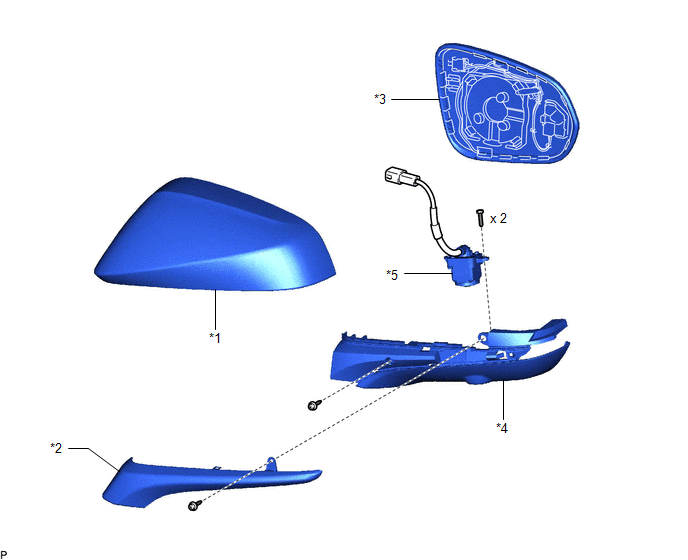

Fig 1: Television Camera (Side) Replacement Components
GTY675573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 OUTER MIRROR COVER *2 NO. 2 OUTER MIRROR COVER
*3 OUTER MIRROR *4 OUTER MIRROR HOLE COVER
*5 SIDE TELEVISION CAMERA ASSEMBLY - -
