Removal [08/2019 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION

    Refer to PRECAUTION [08/2019 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

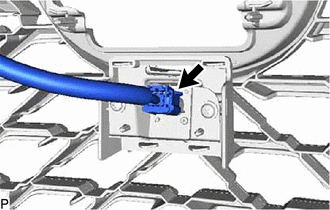

    1. Disconnect the connector.
      GTY962960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

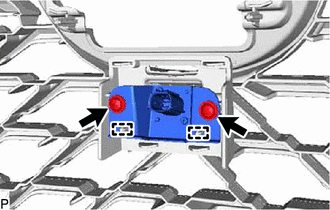

    2. Remove the 2 screws.
      GTY962956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides and remove the front television camera assembly.
  5. REMOVE TELEVISION CAMERA WIRE

    HINT:

    Perform this procedure only when replacement of the television camera wire is necessary.

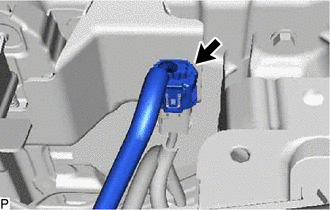

    1. Disconnect the connector and remove the television camera wire.
      GTY663026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
