Components [09/2015 - 08/2019]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

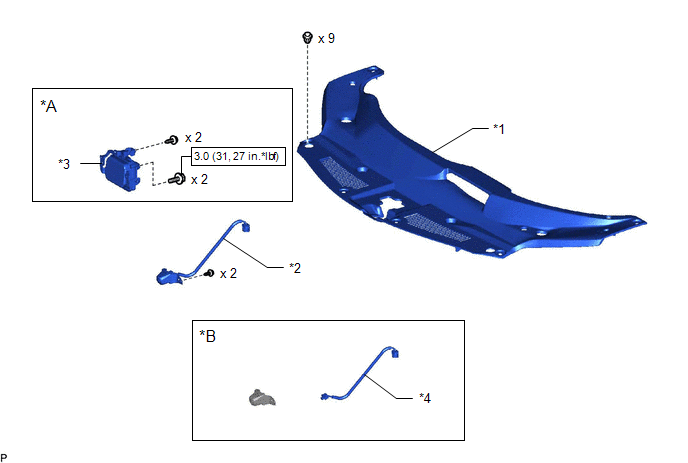

Fig 1: Television Camera (Front) Replacement Components [09/2015 - 08/2019]
GTY613646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Pre-collision System *B for TMC Made
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT TELEVISION CAMERA ASSEMBLY
*3 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *4 TELEVISION CAMERA WIRE
