Components [08/2019 - ]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

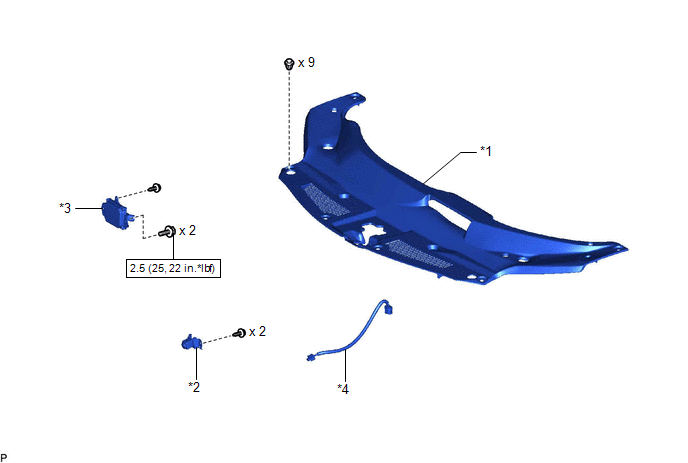

Fig 1: Television Camera (Front) Replacement Components With Torque Specifications [08/2019 - ]

Callout	Description	Callout	Description
*1	COOL AIR INTAKE DUCT SEAL	*2	FRONT TELEVISION CAMERA ASSEMBLY
*3	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	*4	TELEVISION CAMERA WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
