Components [09/2015 - ]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

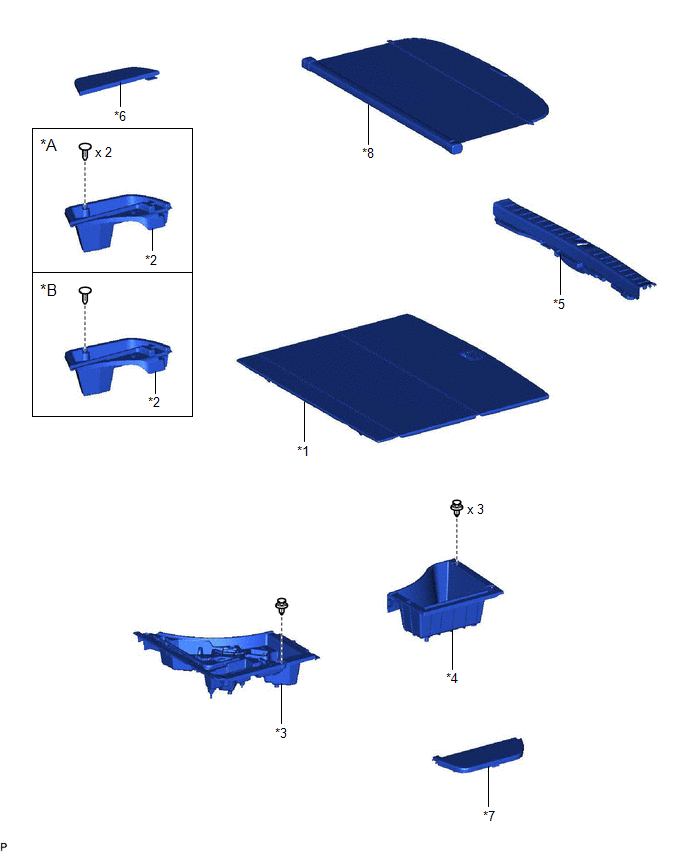

| *A |
for TMC Made |
*B |
for TMMC Made |
| *1 |
DECK BOARD ASSEMBLY |
*2 |
DECK SIDE TRIM BOX RH |
| *3 |
FRONT DECK FLOOR BOX |
*4 |
REAR DECK FLOOR BOX |
| *5 |
REAR FLOOR FINISH PLATE |
*6 |
REAR NO. 3 FLOOR BOARD |
| *7 |
REAR NO. 4 FLOOR BOARD |
*8 |
TONNEAU COVER ASSEMBLY |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

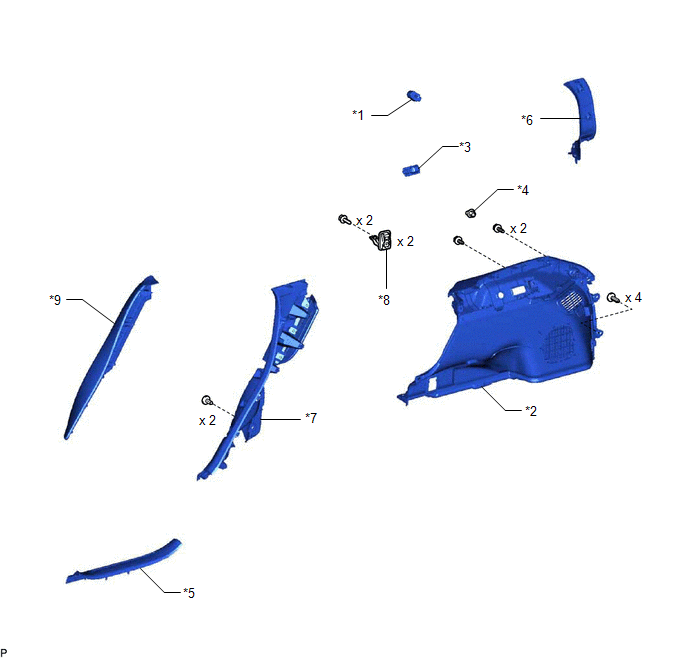

| *1 |
BLIND SPOT MONITOR BUZZER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 |
NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
*4 |
NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 |
REAR DOOR SCUFF PLATE LH |
*6 |
REAR FLOOR FINISH SIDE PLATE LH |
| *7 |
REAR SEAT SIDE GARNISH LH |
*8 |
ROPE HOOK ASSEMBLY |
| *9 |
UPPER QUARTER TRIM PAD LH |
- |
- |
