Removal [12/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2017 - ]
REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 12 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]
REMOVE REAR DOOR INSIDE SCUFF PLATE LH
Refer to PROCEDURE - Step 13 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 13 [08/2019 - ]
REMOVE REAR SEAT OUTER TRACK BRACKET COVER LH
for 60/40 Split Seat Type:

Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

for Captain Seat Type:

Refer to PROCEDURE - Step 6 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]
REMOVE FRONT DECK SIDE TRIM COVER LH
Refer to PROCEDURE - Step 28 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 28 [08/2019 - ]
REMOVE REAR SEAT SIDE GARNISH LH
Refer to PROCEDURE - Step 29 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 29 [08/2019 - ]
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 26 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 - ]
REMOVE ROPE HOOK ASSEMBLY
Refer to PROCEDURE - Step 31 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 31 [08/2019 - ]
REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 1 [08/2019 - ]
REMOVE NO. 2 AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR
Refer to PROCEDURE - Step 1
REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 35 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 35 [08/2019 - ]

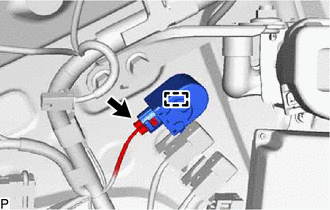

REMOVE BLIND SPOT MONITOR BUZZER

Disconnect the connector.

Disengage the clamp and remove the blind spot monitor buzzer.
