Components [12/2017 - ]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

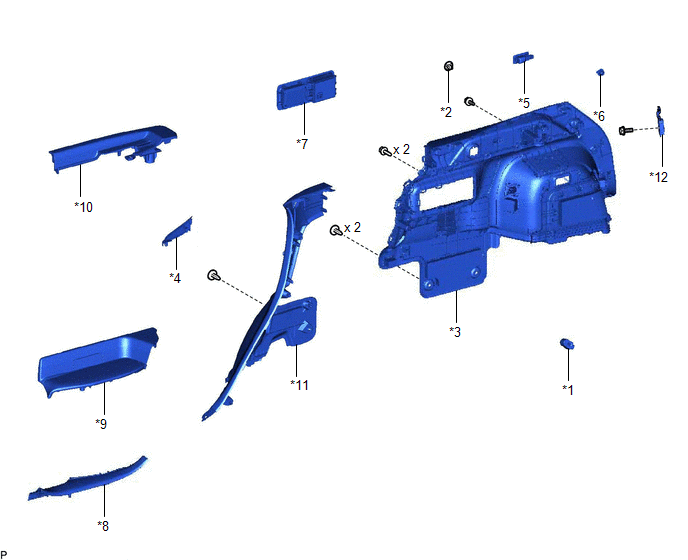

| *1 | BLIND SPOT MONITOR BUZZER | *2 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR |
| *3 | DECK TRIM SIDE PANEL ASSEMBLY LH | *4 | FRONT DECK SIDE TRIM COVER LH |
| *5 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *6 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *7 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY | *8 | REAR DOOR INSIDE SCUFF PLATE LH |
| *9 | REAR DOOR SCUFF PLATE LH | *10 | REAR SEAT OUTER TRACK BRACKET COVER LH |
| *11 | REAR SEAT SIDE GARNISH LH | *12 | ROPE HOOK ASSEMBLY |
