Removal [08/2016 - 08/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [09/2015 - 12/2017] , or refer to PRECAUTION [12/2017 - 08/2019]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019]
REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 3 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]
REMOVE INSTRUMENT PANEL GARNISH RH
Refer to PROCEDURE - Step 23 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 23 [12/2017 - 08/2019]
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019]
REMOVE COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]
REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 26 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 26 [12/2017 - 08/2019]
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 27 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 27 [12/2017 - 08/2019]

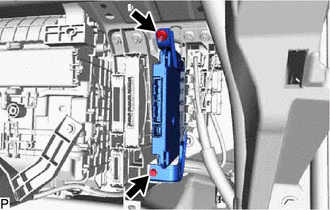

REMOVE PARKING ASSIST ECU

Disconnect each connector.

Remove the bolt and nut and parking assist ECU.
