Removal [09/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL GARNISH LH
Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]
REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 3 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 8 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

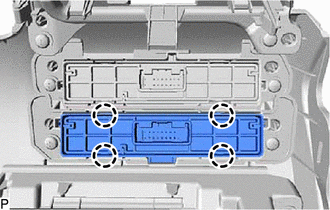

REMOVE PANORAMIC VIEW MONITOR SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY)

Disengage the 4 claws and remove the panoramic view monitor switch (integration control and panel assembly).
