Removal [08/2016 - 08/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2015 - 12/2017] , or refer to PRECAUTION [12/2017 - 08/2019]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019]

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  4. REMOVE INSTRUMENT PANEL GARNISH RH

    Refer to PROCEDURE - Step 23 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 23 [12/2017 - 08/2019]

  5. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019]

  6. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 26 [12/2017 - 08/2019]

  8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 27 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 27 [12/2017 - 08/2019]

  9. REMOVE PARKING ASSIST ECU (w/ Panoramic View Monitor System)

    See step  9

  10. REMOVE ECU INTEGRATION BOX RH

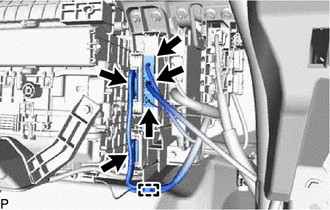

    1. Disconnect each connector.
      GTY683641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

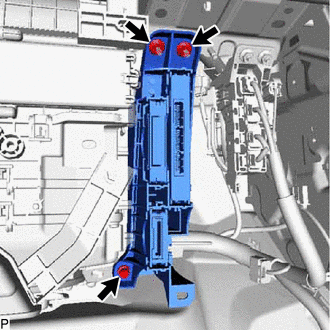

    3. Remove the bolt, 2 nuts and ECU integration box RH.
      GTY662997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CLEARANCE WARNING ECU ASSEMBLY

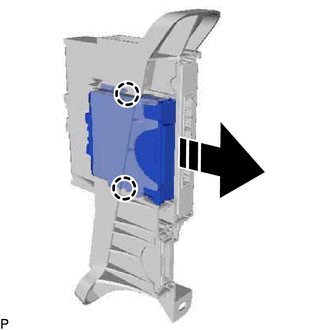

    1. Disengage the 2 claws and remove the clearance warning ECU assembly as shown in the illustration.
      GTY643757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
