Installation [08/2016 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CLEARANCE WARNING ECU ASSEMBLY

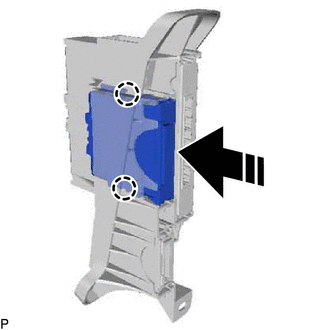

    1. Engage the 2 claws to install the clearance warning ECU assembly as shown in the illustration.
      GTY666775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL ECU INTEGRATION BOX RH
    1. Install the ECU integration box RH with the bolt and 2 nuts.

      Nut

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Engage the clamp.
    3. Connect each connector.
  3. INSTALL PARKING ASSIST ECU (w/ Panoramic View Monitor System)

    See step  1, or see step  1

  4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 15 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 15 [08/2019 - ]

  5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 16 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 16 [08/2019 - ]

  6. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 2 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - ]

  7. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 43 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 42 [12/2017 - ]

  8. INSTALL INSTRUMENT PANEL GARNISH RH

    Refer to PROCEDURE - Step 19 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 19 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 19 [08/2019 - ]

  9. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 8 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019] , or refer to INITIALIZATION [08/2019 - ]

  11. PERFORM CALIBRATION

    Refer to CALIBRATION [08/2016 - 12/2017] , or refer to CALIBRATION [12/2017 - 08/2019] , or refer to CALIBRATION [08/2019 - ]

    • SST: 09989-00020
