Components [09/2015 - 08/2019]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

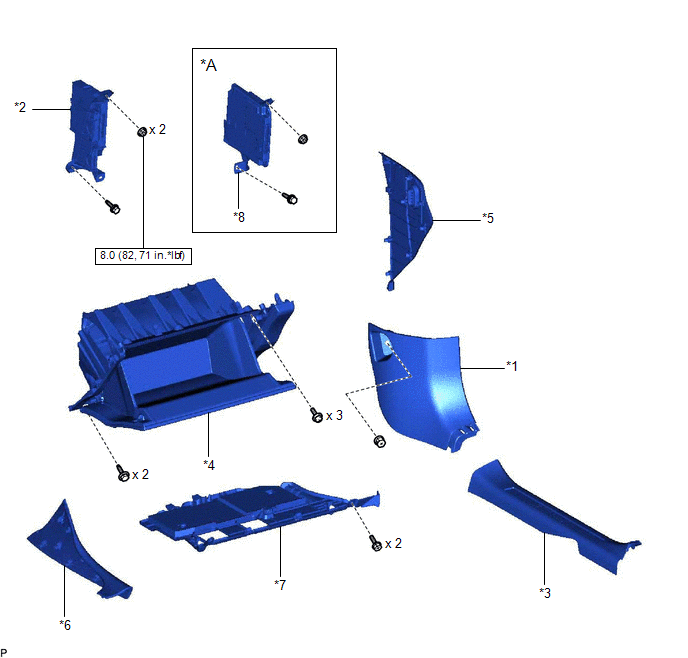

Fig 1: Clearance Warning ECU Replacement Components With Torque Specifications (1 Of 2) [09/2015 - 08/2019]
| Callout | Description | Callout | Description |
| *A | w/ Panoramic View Monitor System | - | - |
| *1 | COWL SIDE TRIM BOARD RH | *2 | ECU INTEGRATION BOX RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| *5 | INSTRUMENT PANEL GARNISH RH | *6 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
| *7 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *8 | PARKING ASSIST ECU |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *1 | CLEARANCE WARNING ECU ASSEMBLY | - | - |
