Removal [08/2019 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [12/2017 - ]
- REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 12
- REMOVE REAR DOOR INSIDE SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 13
- REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH
for 60/40 Split Seat Type:
Refer to PROCEDURE - Step 7
for Captain Seat Type:
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 6
- REMOVE FRONT DECK SIDE TRIM COVER RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 28
- REMOVE REAR SEAT SIDE GARNISH RH
Refer to PROCEDURE - Step 40
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 34
- REMOVE ROPE HOOK ASSEMBLY
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 31
- REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
Refer to PROCEDURE - Step 44

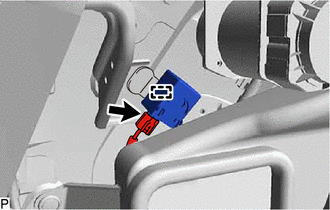

- REMOVE NO. 2 CLEARANCE WARNING BUZZER
