Installation [09/2015 - ]: Procedure

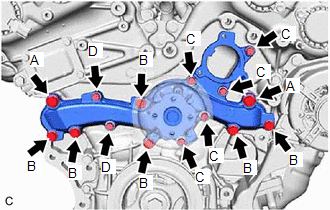

1. Install a new water pump gasket and engine water pump assembly together with the water pump pulley with the 15 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt (A)

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

   Bolt (B)

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   Bolt (C) and (D)

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

   Adhesive

   Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

   Standard Length

   Item	Length
   Bolt (A)	60 mm (2.36 in.)
   Bolt (B)	55 mm (2.17 in.)
   Bolt (C), (D)	22 mm (0.866 in.)

   NOTE:

   • Make sure that there is no oil on the threads of the bolts (A) and (B).
   • Be sure to replace the 2 bolts (D) with new ones or reuse them after applying adhesive.
   • Do not start the engine for at least 1 hour after installation.

1. Temporarily install the water pump pulley with the 4 bolts.
2. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Hold
   *c	Turn

3. Fully tighten the 4 bolts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Install the No. 2 idler pulley sub-assembly with the bolt.

   Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

Refer to PROCEDURE - Step 1
