Components [12/2017 - ]
Fig 1: Rear Differential Carrier Assembly Replacement Components (1 Of 7) With Torque Specifications [12/2017 - ]
| Callout | Description | Callout | Description |
| *1 | REAR DIFFERENTIAL DRAIN PLUG | *2 | DIFFERENTIAL INSPECTION PLUG |
| *3 | GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
Fig 2: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (2 Of 7) [12/2017 - ]
| Callout | Description | Callout | Description |
| *A | w/ Rear No. 2 Seat | *B | w/o Rear No. 2 Seat |
| *1 | REAR STABILIZER BAR | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

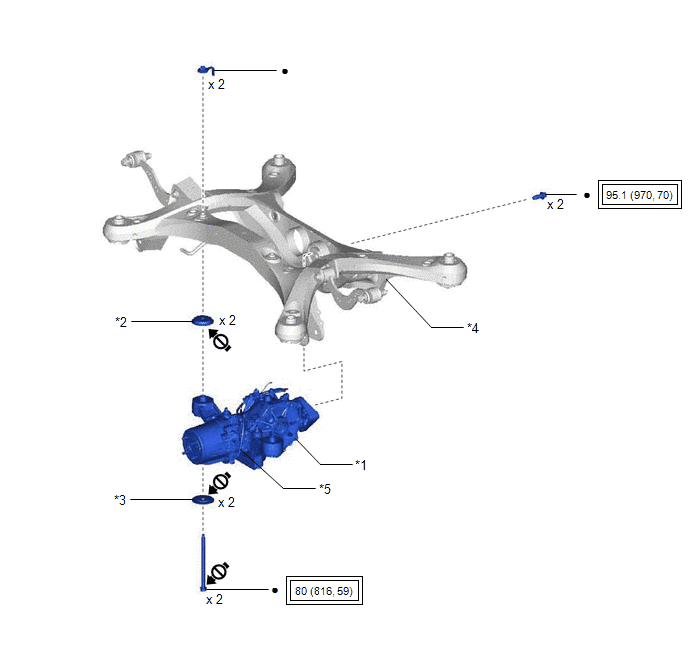

Fig 3: Rear Differential Carrier Assembly Replacement Components (3 Of 7) With Torque Specifications [12/2017 - ]
| Callout | Description | Callout | Description |
| *1 | REAR DIFFERENTIAL CARRIER ASSEMBLY WITH DIFFERENTIAL SUPPORT | *2 | UPPER REAR DIFFERENTIAL MOUNT STOPPER |
| *3 | LOWER REAR DIFFERENTIAL MOUNT STOPPER | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *5 | VACUUM HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Do not apply lubricants | - | - |

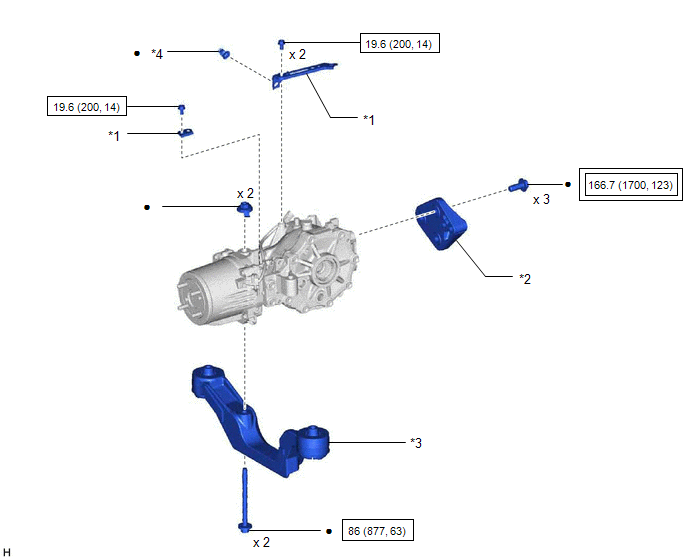

Fig 4: Rear Differential Carrier Assembly Replacement Components (4 Of 7) With Torque Specifications [12/2017 - ]
| Callout | Description | Callout | Description |
| *1 | CONNECTOR BRACKET | *2 | DIFFERENTIAL SUPPORT |
| *3 | NO. 2 REAR DIFFERENTIAL SUPPORT | *4 | CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | - | - |

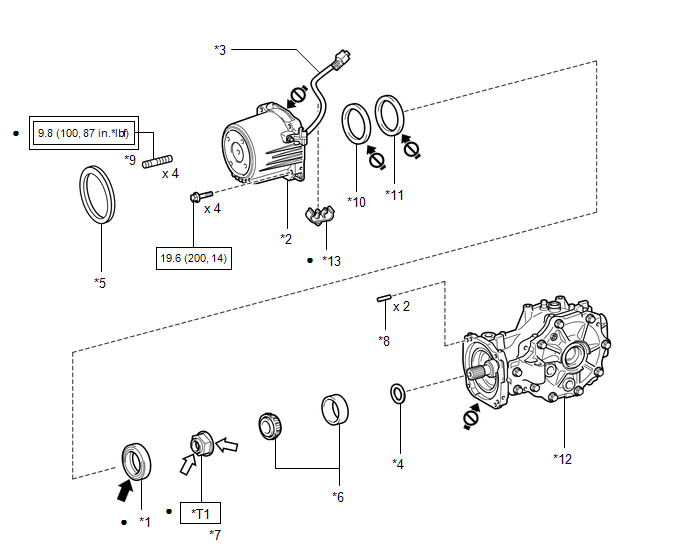

Fig 5: Rear Differential Carrier Assembly Replacement Components (5 Of 7) With Torque Specifications [12/2017 - ]
| Callout | Description | Callout | Description |
| *1 | DIAPHRAGM OIL SEAL | *2 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY |
| *3 | ELECTRO MAGNETIC CONTROL COUPLING WIRE HARNESS | *4 | REAR DIFFERENTIAL DRIVE PINION OIL SLINGER |
| *5 | REAR DIFFERENTIAL DUST DEFLECTOR | *6 | REAR DRIVE PINION FRONT TAPERED ROLLER BEARING |
| *7 | REAR DRIVE PINION NUT | *8 | STRAIGHT PIN |
| *9 | STUD BOLT | *10 | TRANSMISSION COUPLING CONICAL SPRING WASHER |
| *11 | TRANSMISSION COUPLING SPACER | *12 | REAR DIFFERENTIAL CARRIER ASSEMBLY |
| *13 | CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| *T1 | For use without SST: 321 N*m (3273 kgf*cm, 237 ft.*lbf) or less For use with SST: 307 N*m (3131 kgf*cm, 226 ft.*lbf) or less |
• | Non-reusable part |
| MP grease | Hypoid gear oil LSD | ||
| Do not apply lubricants | - | - |

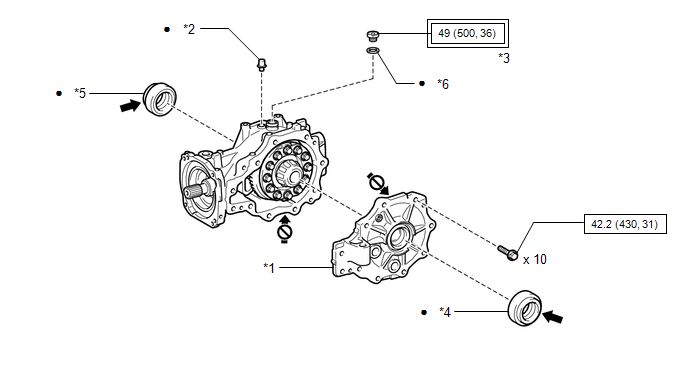

Fig 6: Rear Differential Carrier Assembly Replacement Components (6 Of 7) With Torque Specifications [12/2017 - ]
| Callout | Description | Callout | Description |
| *1 | DIFFERENTIAL SIDE BEARING RETAINER | *2 | REAR DIFFERENTIAL CARRIER COVER BREATHER PLUG |
| *3 | REAR DIFFERENTIAL FILLER PLUG | *4 | REAR DRIVE SHAFT OIL SEAL LH |
| *5 | REAR DRIVE SHAFT OIL SEAL RH | *6 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | MP grease | |
| Do not apply lubricants | - | - |

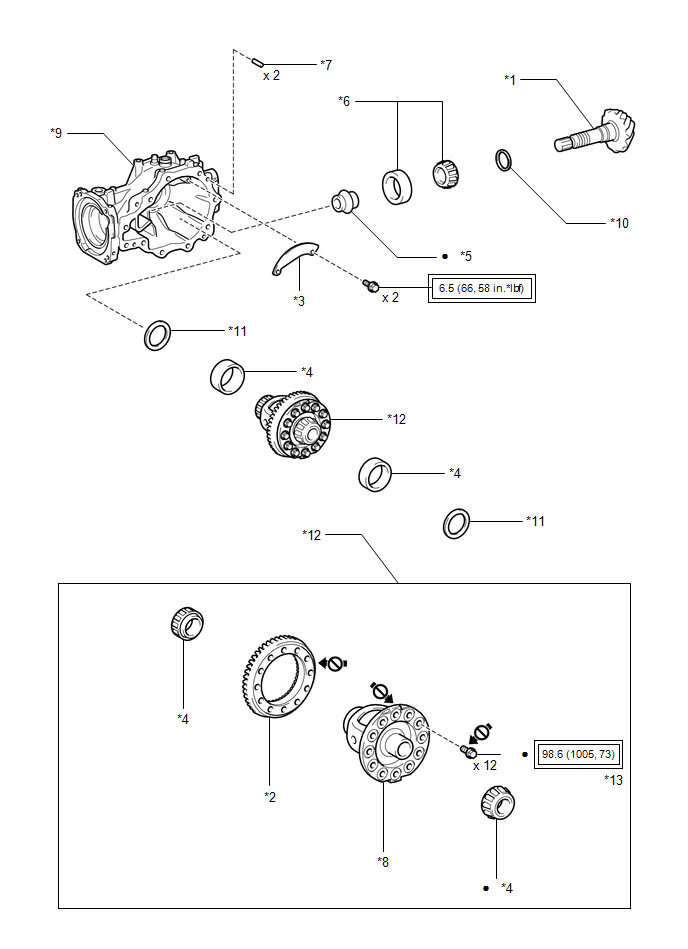

Fig 7: Rear Differential Carrier Assembly Replacement Components (7 Of 7) With Torque Specifications [12/2017 - ]
| Callout | Description | Callout | Description |
| *1 | DIFFERENTIAL DRIVE PINION | *2 | DIFFERENTIAL RING GEAR |
| *3 | REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR | *4 | REAR DIFFERENTIAL CASE BEARING |
| *5 | REAR DIFFERENTIAL DRIVE PINION BEARING SPACER | *6 | REAR DRIVE PINION REAR TAPERED ROLLER BEARING |
| *7 | STRAIGHT PIN | *8 | REAR DIFFERENTIAL CASE SUB-ASSEMBLY |
| *9 | REAR DIFFERENTIAL CARRIER | *10 | REAR DIFFERENTIAL DRIVE PINION PLATE WASHER |
| *11 | REAR DIFFERENTIAL SIDE GEAR SHAFT PLATE WASHER | *12 | REAR DIFFERENTIAL CASE ASSEMBLY |
| *13 | REAR DIFFERENTIAL CASE BOLT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| * | Precoated Part | Do not apply lubricants |
