Components [12/2017 - ]

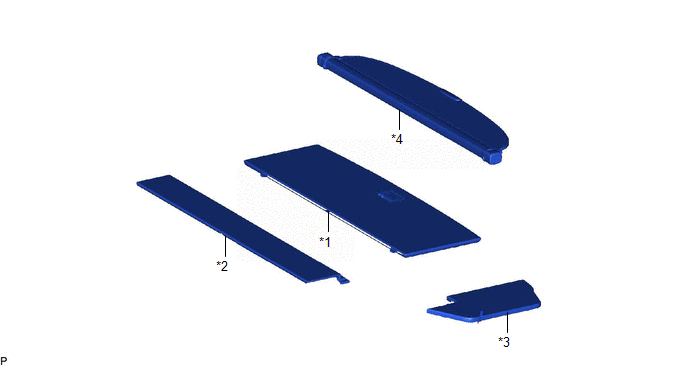

| *1 | DECK BOARD ASSEMBLY | *2 | NO. 1 DECK BOARD |
| *3 | REAR NO. 4 FLOOR BOARD | *4 | TONNEAU COVER ASSEMBLY |
| *A | w/o Woofer | *B | w/ Woofer |

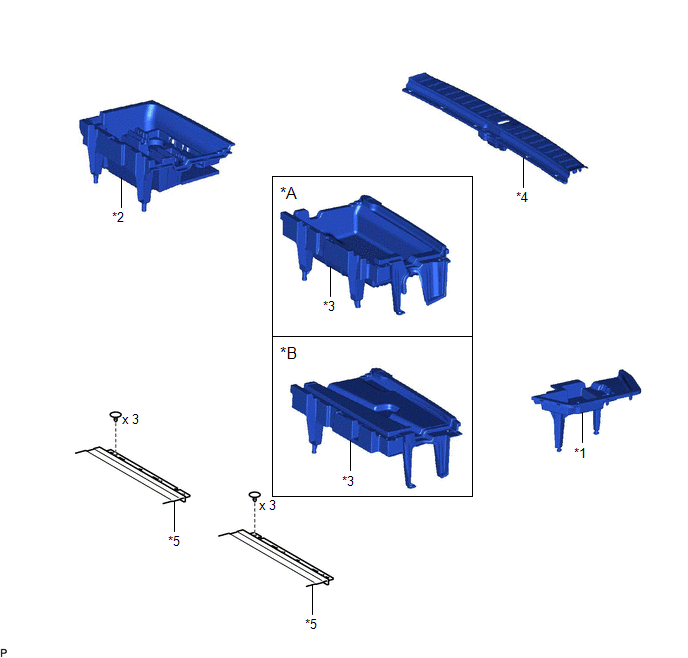

| *1 | DECK SIDE TRIM BOX LH | *2 | FRONT DECK FLOOR BOX |
| *3 | REAR DECK FLOOR BOX | *4 | REAR FLOOR FINISH PLATE |
| *5 | REAR NO. 2 SEAT ASSEMBLY | - | - |
Fig 3: Roof Headlining (W/ Rear No. 2 Seat) Replacement Components With Torque Specifications (3 Of 12)

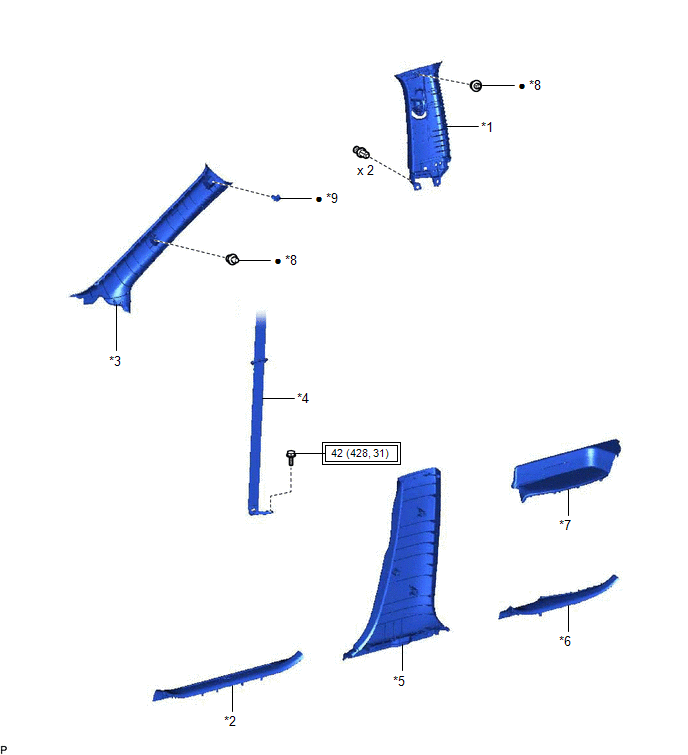

| Callout | Description | Callout | Description |

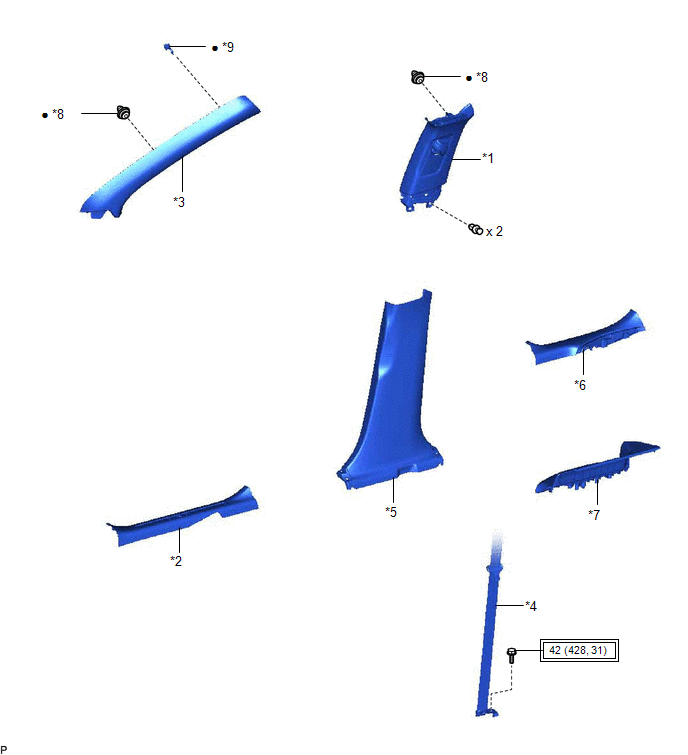

| *1 | CENTER PILLAR GARNISH ASSEMBLY LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | FRONT PILLAR GARNISH LH | *4 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *5 | LOWER CENTER PILLAR GARNISH LH | *6 | REAR DOOR INSIDE SCUFF PLATE LH |
| *7 | REAR DOOR SCUFF PLATE LH | *8 | CLIP |
| *9 | FRONT PILLAR GARNISH CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
Fig 4: Roof Headlining (W/ Rear No. 2 Seat) Replacement Components With Torque Specifications (4 Of 12)
| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH ASSEMBLY RH | *2 | FRONT DOOR SCUFF PLATE RH |
| *3 | FRONT PILLAR GARNISH RH | *4 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *5 | LOWER CENTER PILLAR GARNISH RH | *6 | REAR DOOR INSIDE SCUFF PLATE RH |
| *7 | REAR DOOR SCUFF PLATE RH | *8 | CLIP |
| *9 | FRONT PILLAR GARNISH CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
Fig 5: Roof Headlining (W/ Rear No. 2 Seat) Replacement Components With Torque Specifications (5 Of 12)
| Callout | Description | Callout | Description |
| *1 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | FRONT DECK SIDE TRIM COVER LH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH | *8 | REAR ROOF SIDE RAIL GARNISH ASSEMBLY LH |
| *9 | REAR SEAT SIDE GARNISH LH | *10 | ROOF SIDE INNER GARNISH ASSEMBLY LH |
| *11 | ROPE HOOK ASSEMBLY | *12 | CLIP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
Fig 6: Roof Headlining (W/ Rear No. 2 Seat) Replacement Components With Torque Specifications (6 Of 12)

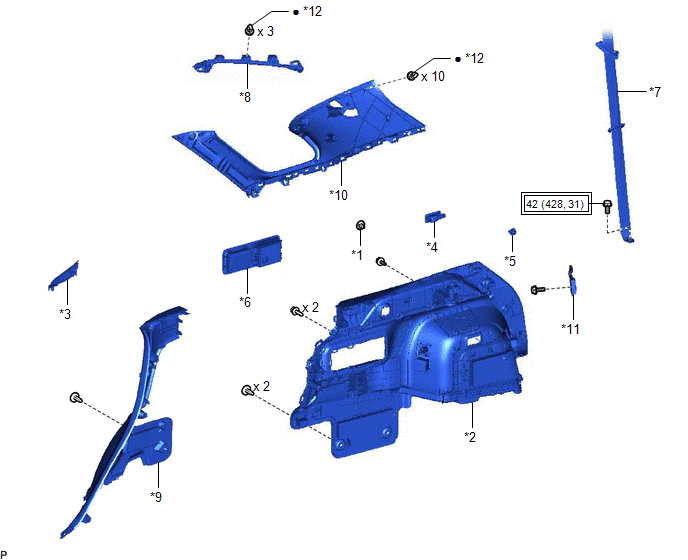

| Callout | Description | Callout | Description |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | FRONT DECK SIDE TRIM COVER RH |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH | *6 | REAR ROOF SIDE RAIL GARNISH ASSEMBLY RH |
| *7 | REAR SEAT SIDE GARNISH RH | *8 | ROOF SIDE INNER GARNISH ASSEMBLY RH |
| *9 | ROPE HOOK ASSEMBLY | *10 | CLIP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

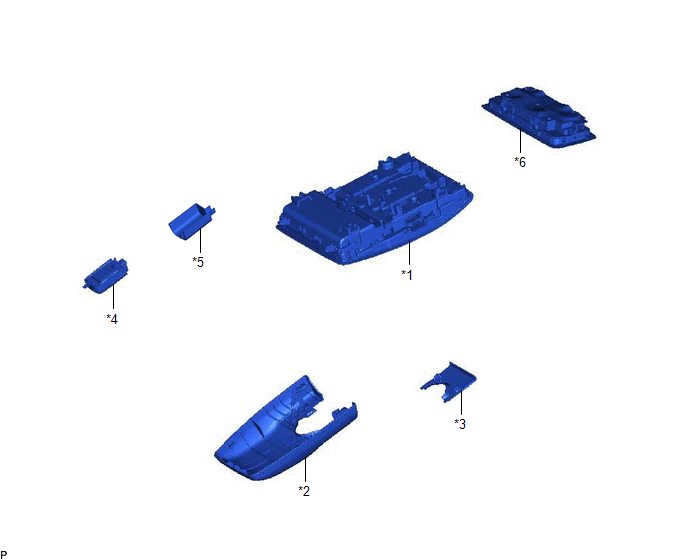

| *1 | MAP LIGHT ASSEMBLY | *2 | NO. 1 FORWARD RECOGNITION COVER |
| *3 | NO. 2 FORWARD RECOGNITION COVER | *4 | RAIN SENSOR |
| *5 | RAIN SENSOR COVER | *6 | SPOT LIGHT ASSEMBLY |

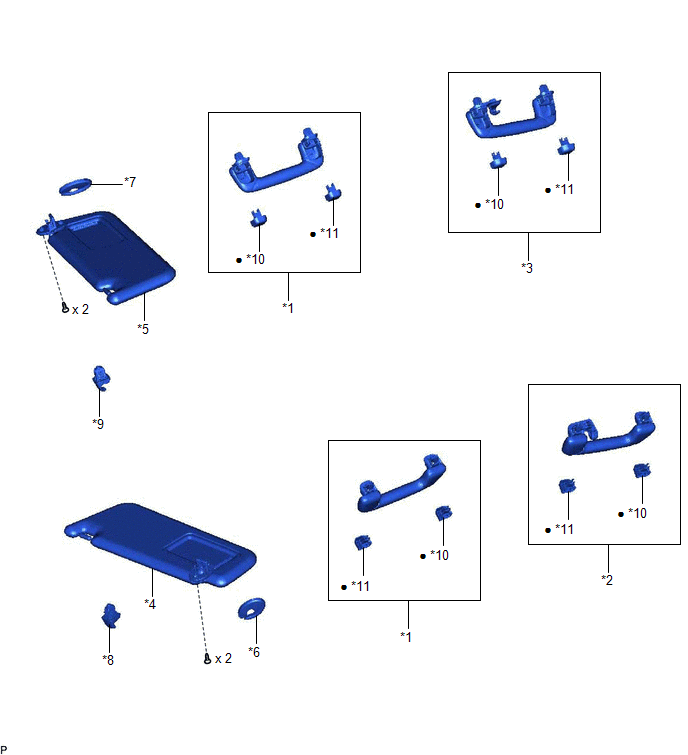

| *1 | ASSIST GRIP SUB-ASSEMBLY | *2 | REAR ASSIST GRIP ASSEMBLY LH |
| *3 | REAR ASSIST GRIP ASSEMBLY RH | *4 | VISOR ASSEMBLY LH |
| *5 | VISOR ASSEMBLY RH | *6 | VISOR BRACKET COVER LH |
| *7 | VISOR BRACKET COVER RH | *8 | VISOR HOLDER LH |
| *9 | VISOR HOLDER RH | *10 | ASSIST GRIP COVER LH |
| *11 | ASSIST GRIP COVER RH | - | - |
| • | Non-reusable part | - | - |

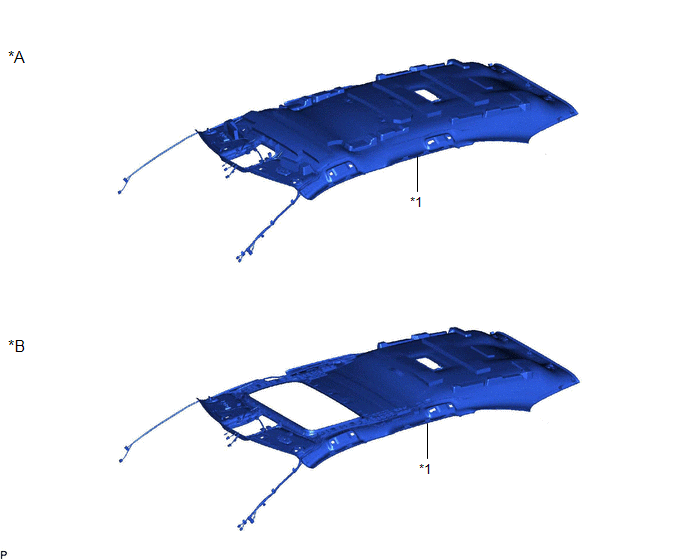

| *A | for Standard Roof | *B | for Sliding Roof |
| *1 | ROOF HEADLINING ASSEMBLY | - | - |

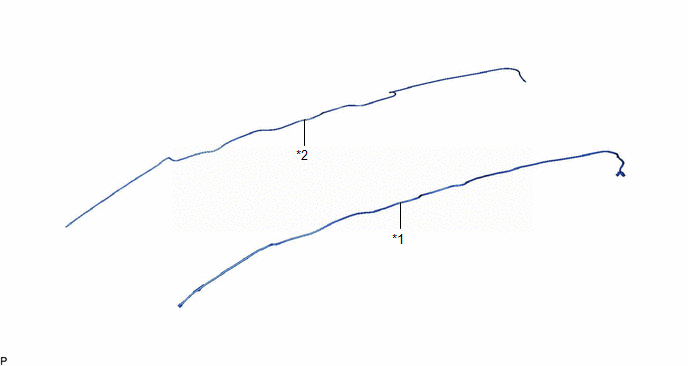

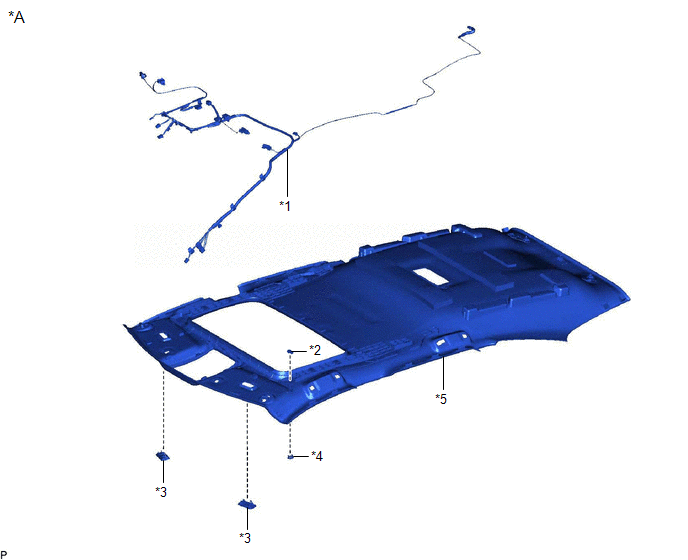

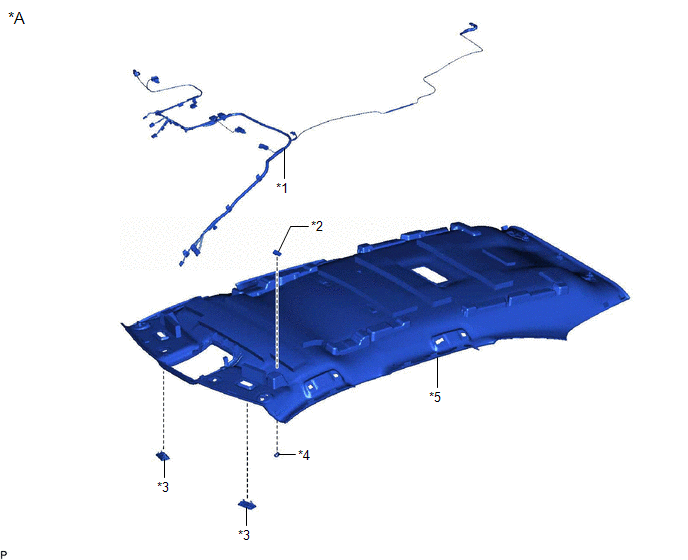

| *1 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *2 | WASHER HOSE ASSEMBLY |
| *A | for Standard Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | VANITY LIGHT ASSEMBLY | *4 | NO. 1 MICROPHONE CASE |
| *5 | ROOF HEADLINING ASSEMBLY | - | - |
| *A | for Sliding Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | VANITY LIGHT ASSEMBLY | *4 | NO. 1 MICROPHONE CASE |
| *5 | ROOF HEADLINING ASSEMBLY | - | - |
