Installation [09/2015 - 08/2019]: Procedure

  1. INSTALL REMOTE TOUCH ASSEMBLY
    1. Connect the connector.

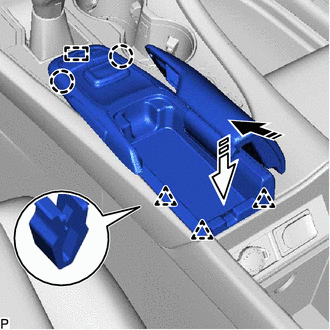

    2. Push the remote touch assembly in the direction indicated by the arrow (1) shown in the illustration to engage the guide and then push it in the direction indicated by the arrow (2) shown in the illustration to engage the 2 claws and 3 clips and install the remote touch assembly.
      GTY670282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
