Removal [09/2015 - 08/2016]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

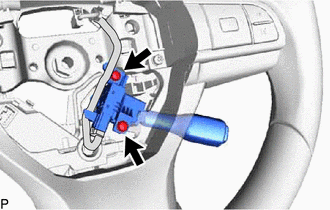

    1. Remove the 2 screws.
      GTY681586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

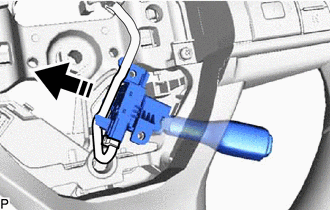

    2. Pull the cruise control main switch as shown in the illustration.
      GTY627087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

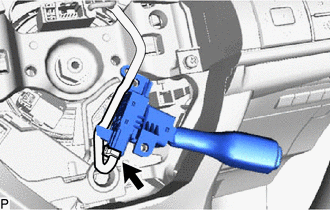

    3. Disconnect the connector to remove the cruise control main switch.
      GTY653732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
