DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [11/2017 - 03/2019]: Wiring Diagram

  1. LH Side
    GTY800566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY827359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY826503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. RH Side

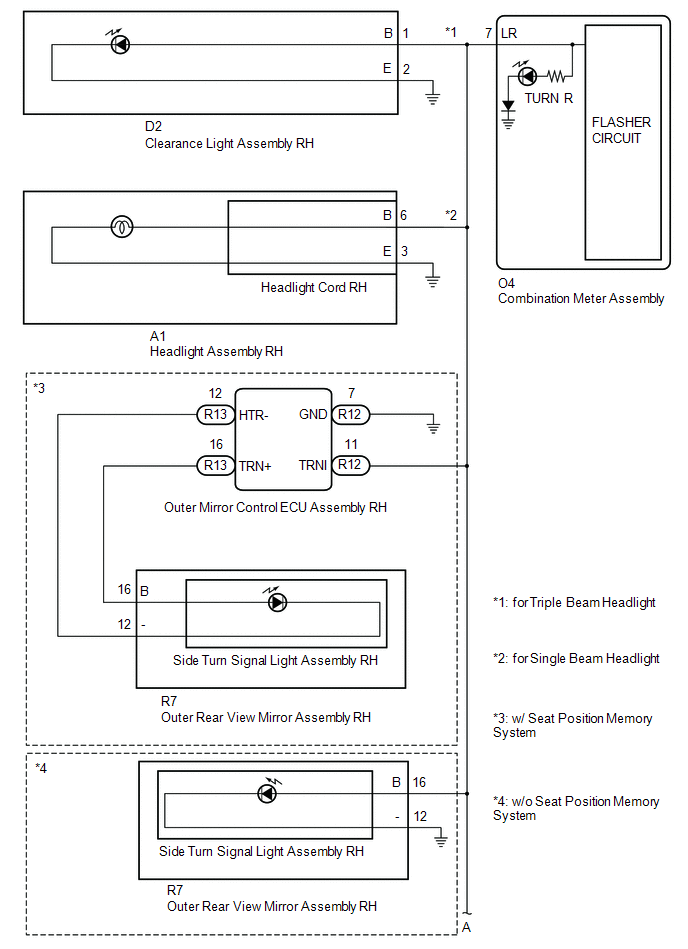

    GTY800568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY794001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY838553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
