DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [03/2019 - ]: Wiring Diagram

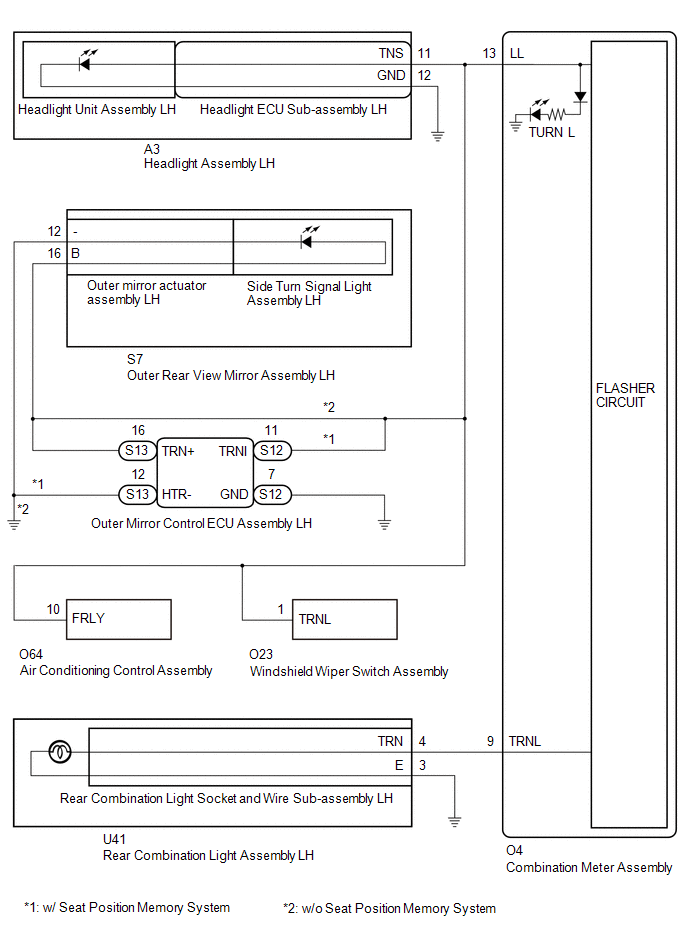

  1. LH SIDE
    GTY960873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

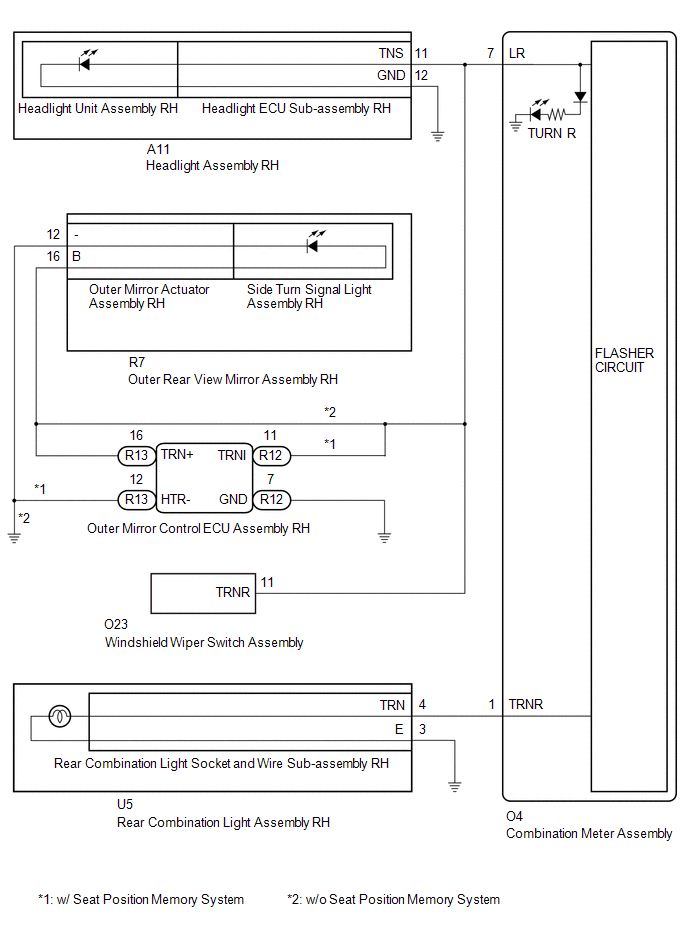

  2. RH SIDE
    GTY961707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
