DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [09/2014 - 11/2017]: Wiring Diagram

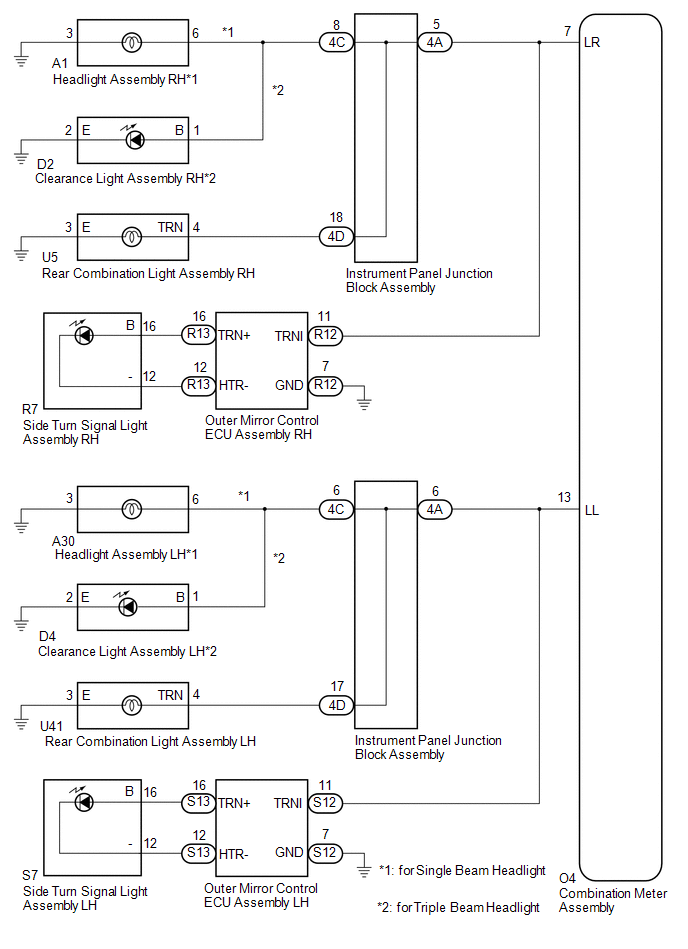

  1. w/ Seat Position Memory
    GTY515669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

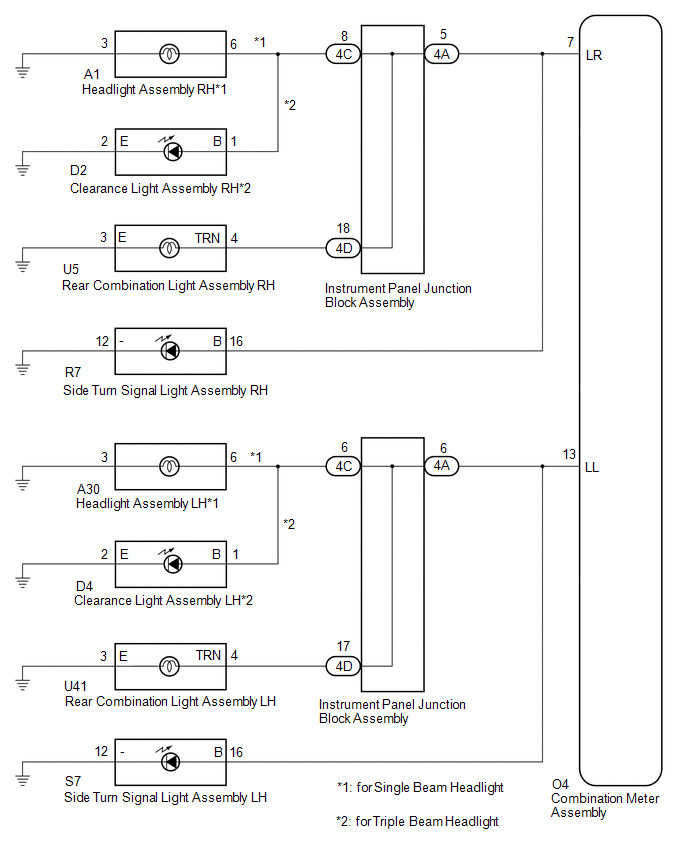

  2. w/o Seat Position Memory
    GTY500436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
