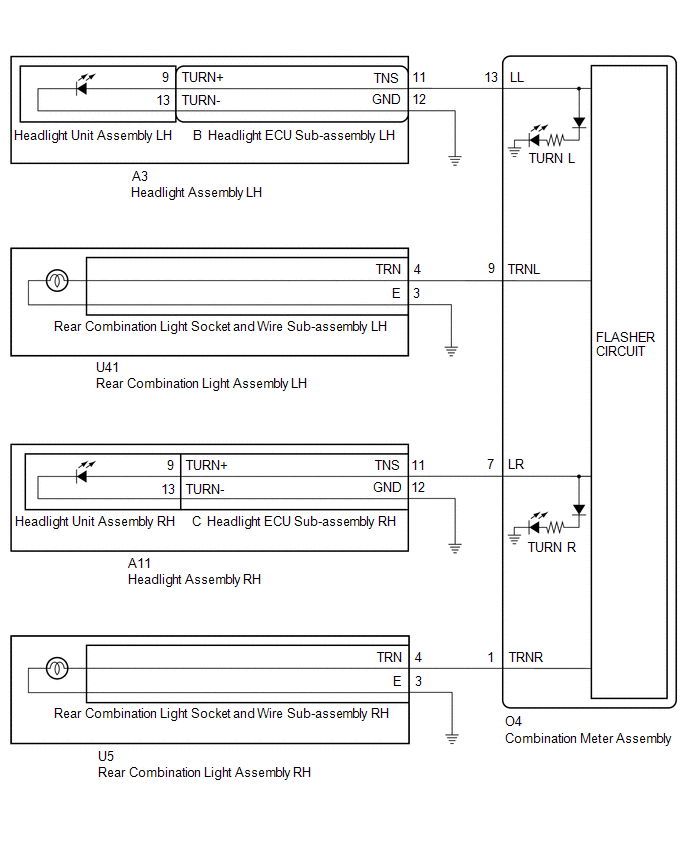

DTC B1507: Open in Turn Signal Circuit [03/2019 - ]: Wiring Diagram

GTY960514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
