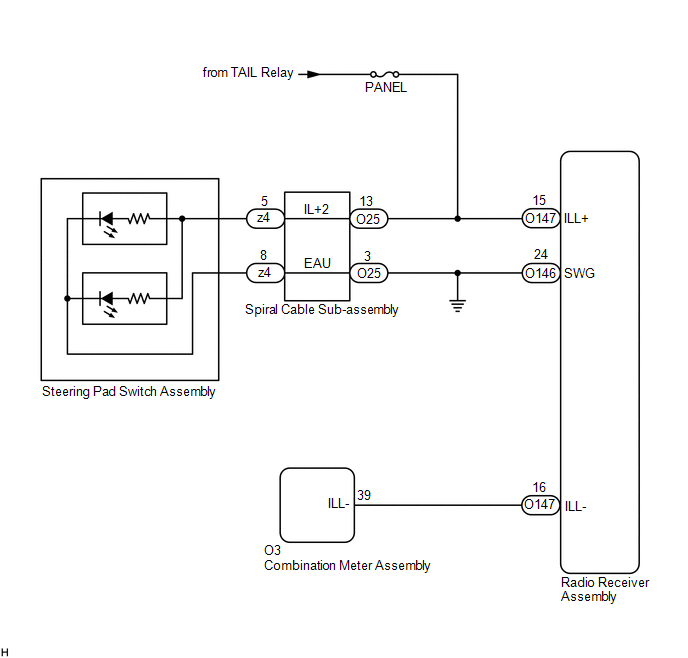

Illumination Circuit [11/2017 - ]: Wiring Diagram

GTY818245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
