Parts Location [11/2017 - 01/2023]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

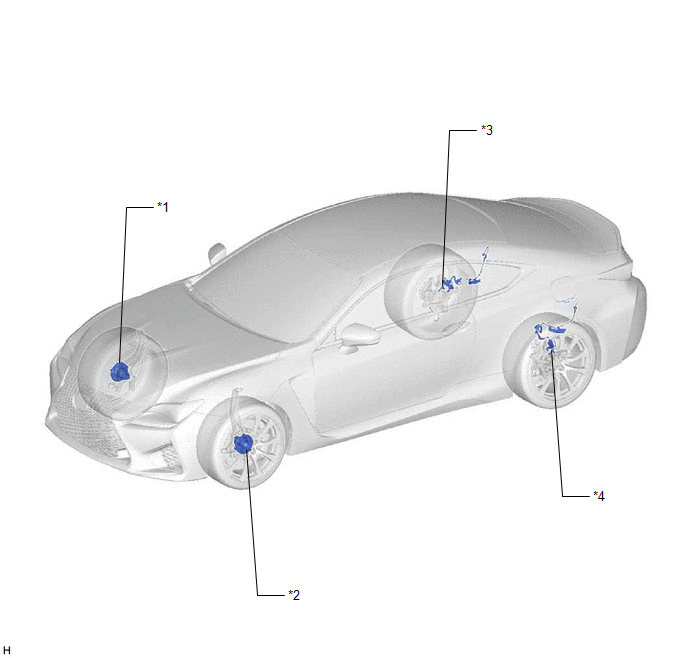

*1	FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR RH	*2	FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR LH
*3	REAR SPEED SENSOR RH	*4	REAR SPEED SENSOR LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

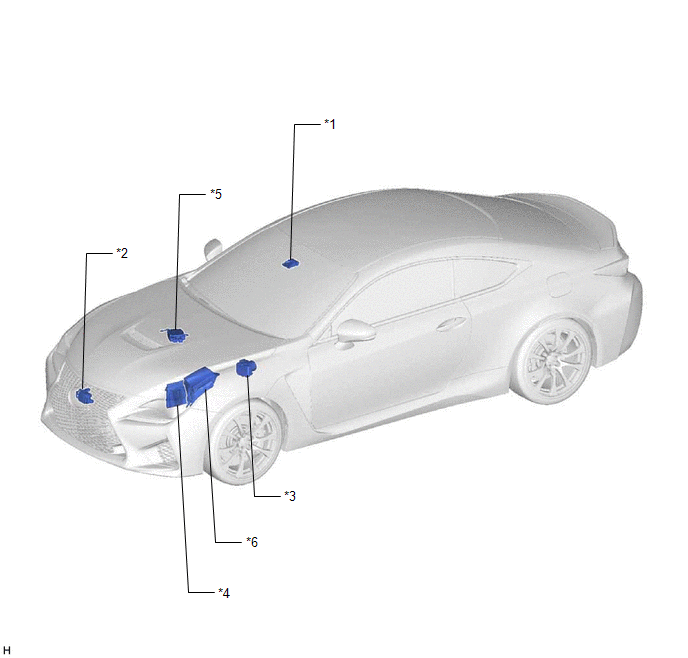

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*4	ECM
*5	POWER STEERING ECU ASSEMBLY	*6	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - RADAR-IG FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

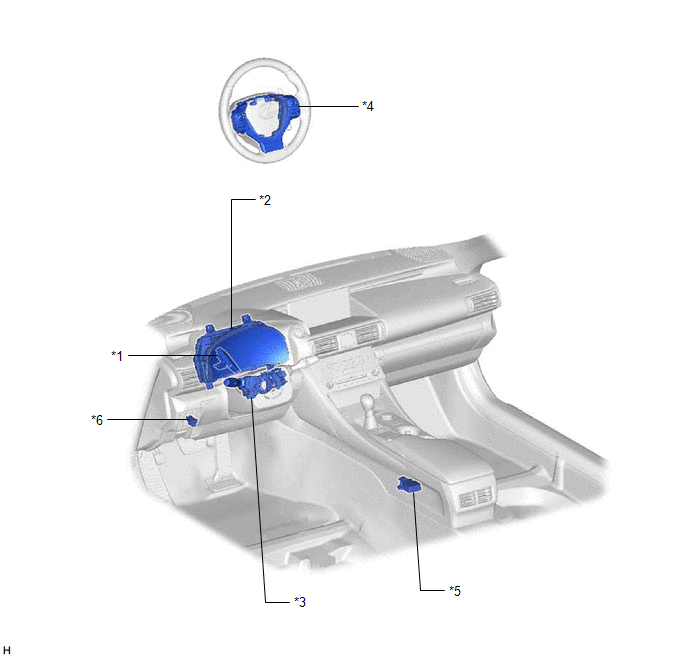

*1	DRIVING SUPPORT ECU ASSEMBLY	*2	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LANE DEPARTURE ALERT INDICATOR - LANE DEPARTURE ALERT BUZZER
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH	*4	STEERING PAD SWITCH ASSEMBLY - LANE DEPARTURE ALERT MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH)
*5	YAW RATE SENSOR	*6	DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

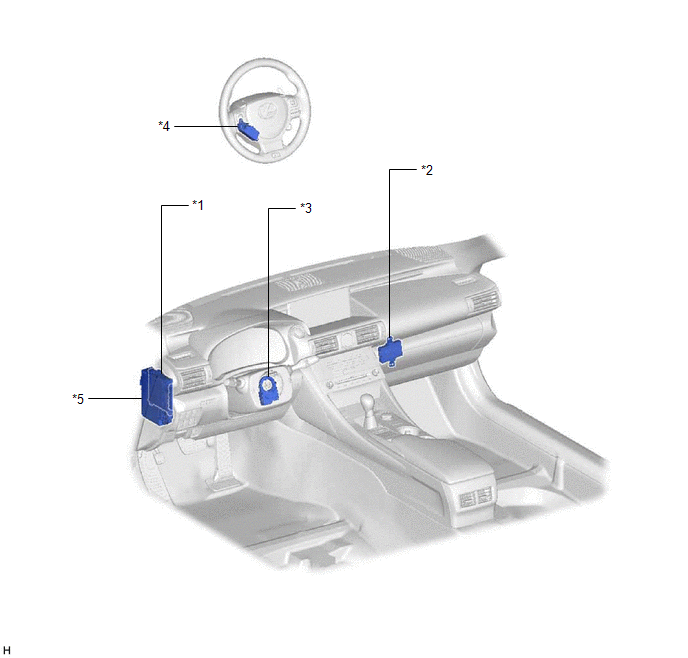

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
*3	STEERING SENSOR	*4	STEERING VIBRATION ECU (STEERING VIBRATION AND HEATER ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE - ECU-IG1 NO. 2 FUSE	-	-
