Removal [11/2021 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2021 - ]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  3. REMOVE NO. 2 INSTRUMENT PANEL WIRE

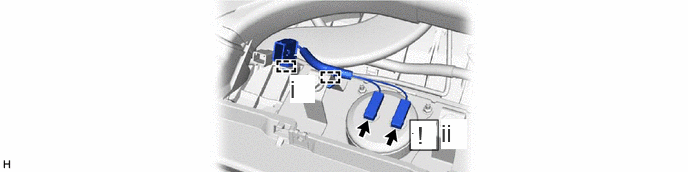

    1. GTY1053611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 clamps.
      2. Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector.

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2021 - ]

  4. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

    GTY835723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

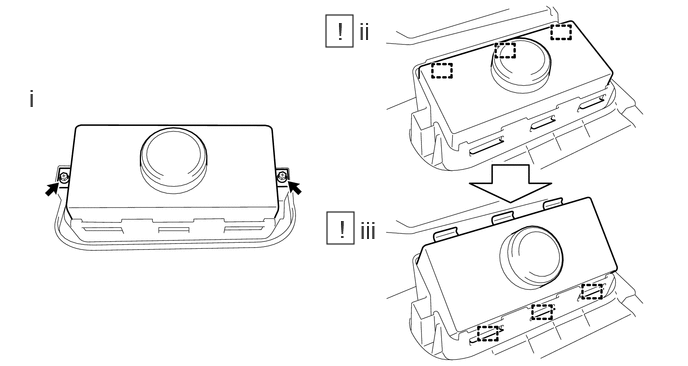

    1. GTY1082583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws.
      2. Pry back the passenger airbag door retainer to disengage the 3 hooks.
        NOTE:

        Do not damage the deployment surface of the instrument panel passenger airbag assembly.

      3. Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.
